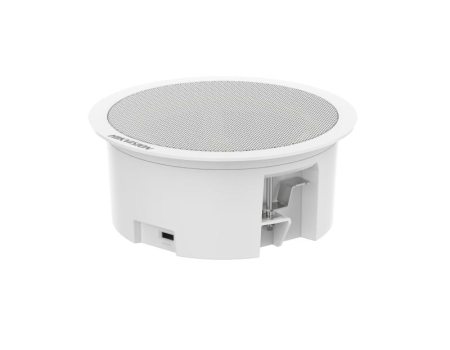

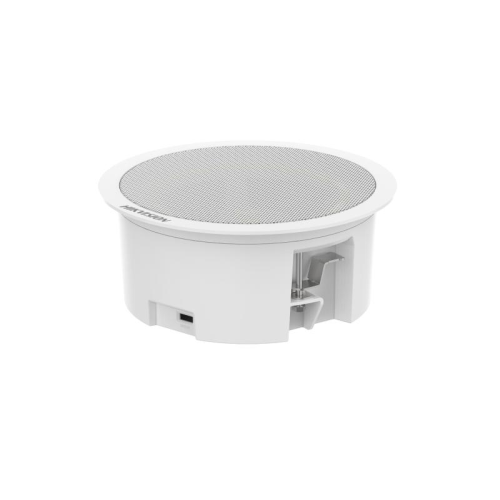

HIKVISION Ceiling Secondary Speaker 6W
- Connecting the primary speaker for amplification.
Speaker |
|
Rated Power |
6 W |
Impedance |
8 Ohm |
Sensitivity(1 m, 1 W) |
93 dB |
Max. Acoustic Pressure |
100 dBSPL |
Direction |
All directions |
Frequency Response |
300 Hz to 15 kHz |
SNR |
82 dB |
Interface |
|
Audio In |
Fixed resistance input × 1, 8 Ohm *The primary speaker(6 W, 8 Ohm) can be connected to a maximum of 1 secondary speaker(6 W, 8 Ohm). |
General |
|
Operating Temperature |
10 C to 50 C |
Material |
Device body: plastic; Mesh cover: metal |
Dimension |
179 mm × 77.5 mm (7.05" × 3.05") (Hole Size: 160 mm) |
Package Dimension |
255 mm × 243 mm × 175 mm (10.04" × 9.57" × 6.89") |
Weight |
Approx. 0.3 kg (0.66 lb.) |
With Package Weight |
Approx. 0.45 kg (0.99 lb.) |
Color |
White |
Packing List |
Device × 1 Mesh cover × 1 Regulatory Compliance and Safety Information × 1 |
Operating Humidity |
</=90% (No condensation) |
Type | File Name | Time Updated | Action |
General | DS-QAZ0206G1-S datashet | 08/11/2024 | Download |
