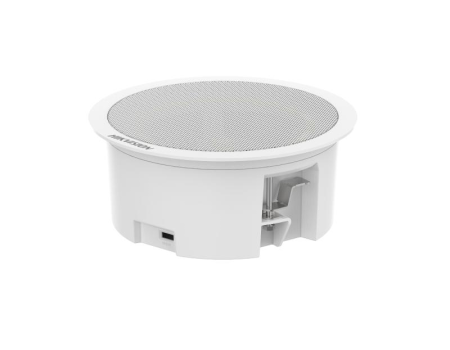

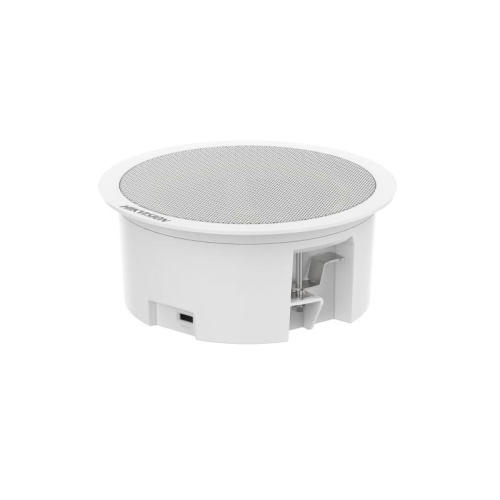

HIKVISION Network Ceiling Speaker 6W
HIKVISION Network Ceiling Speaker 6W
   0 reviews  |  Write a review
Data Sheet

Product Code:

DS-QAZ1206G1-BE

Login for price
  • Adopt high-speed industrial grade dual core chips, built-in NOR Flash+EMMC dual storage, support dual backup of the system to ensure stable and reliable system performance.
  • Support secure startup, user login locking mechanism, and password complexity prompts, support security audit log traceability, and improve system network security.
  • Support batch unified management of remote platforms through IP networks (local area networks/public networks) and flexible configuration of local WEB single machines, while also support local audio collection and playback, adapting to various scene applications.
  • Support fixed resistance output and can be connected to an external sub speaker to increase the coverage area of the sound field, saving installation and wiring costs.
  • Support alarm input, arming schedule, and audio linkage, support TTS speech synthesis and text broadcasting, with natural and smooth standard male and female dual audio options.

Speaker

Rated Power

6 W

Impedance

8 Ohm

Sensitivity(1 m, 1 W)

93 dB

Max. Acoustic Pressure

100 dBSPL

Direction

All directions

Frequency Response

300 Hz to 15 kHz

SNR

82 dB

Speaker Unit

Full frequency 5 × 1

Function

Audio Algorithm

AEC,AGC,ANS,DRC

Audio Bit Rate

G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)

Audio File Format

MP3, WAV

NTP Timing

Support

Broadcast

Regular broadcast, live broadcast, emergency broadcast

Speech Synthesis

English

Network

Network Protocol

IPv4, HTTP, HTTPS , SSL/TLS , DNS,   NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH

Interface Protocol (API)

ISAPI, ISUP, SIP, RTP,ONVIF

Client

Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone

Functions

Audio Function

Support digital noise reduction, manually adjustable for     5 gears to ensure

communication/audio quality.

Communication

Communication Method

Support wired network and bluetoothcommunication

Interface

Ethernet Interface

RJ45 10 M/100 M Adaptive Ethernet port × 1

Local Storage

Built-in 4 GB EMMC (Audio file storage is 1 GB.)

API

ISAPI, ISUP, SIP,ONVIF

Alarm

Alarm input × 2

Audio In

3.5 mm audio interface × 1



Audio Out

fixed resistance output × 1, phoenix terminal, 8 Ohm

*The primary speaker(6 W, 8 Ohm) can be connected to a maximum of 1 secondary speaker(6 W, 8 Ohm).

General

Power

PoE: 802.3at, 12 VDC/1.5 A

Material

Device body: plastic; Mesh cover: metal

Language

5 languages: English, French, Spanish, German, Italian

Dimension

Ø179 mm × 73.5 mm (Ø7.05" × 2.89") (Hole size: 160 mm)

Package Dimension

255 mm × 243 mm × 175 mm (10.04" × 9.57" × 6.89")

Weight

Approx. 0.3 kg (0.66 lb.)

With Package Weight

Approx. 0.5 kg (1.1 lb.)

Color

White



Packing List

Device × 1 Mesh cover × 1

Regulatory Compliance and Safety Information × 1

Bluetooth

Bluetooth 5.0, 10 m

Operating Temperature

-10 °C to 50 °C(14 °F to 122 °F)

Operating Humidity

<90% (No condensation)

Approval







RF

CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G)

RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1

Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G)

ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No.

1120/2018



EMC

CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN

61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32:

2015 IC: ICES-003: Issue 7

Safety

CB: IEC 62368-1:2014

CE-LVD: EN 62368-1:2014/A11:2017



Environment

CE-RoHS: 2011/65/EU WEEE: 2012/19/EU

Reach: Regulation (EC) No 1907/2006
