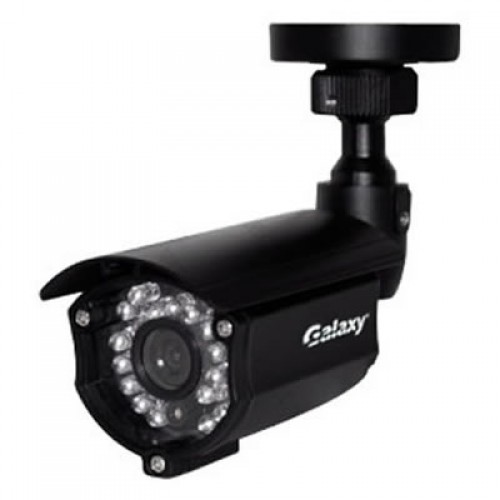

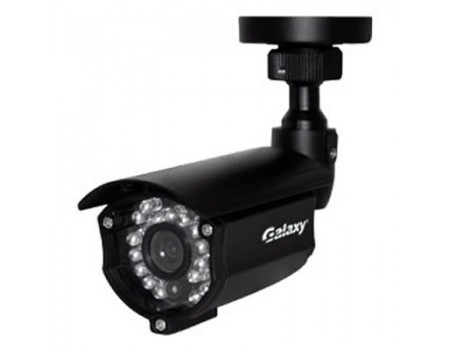

Galaxy 600TVL IR Outdoor Bullet Camera
Sale
Data Sheet
Product Code:
Product Code:
SED-CAM-SVB66
Summary:1/3" Sony Super HAD II CCD, Day and Night function, 600 TVL, 0 Lux, Electronic Shutter Control
- 1/3" Sony Super HAD ll CCD
- Day and Night Function
- 600 TV Line Resolution
- 0 Lux at IR On
- Electronic Shutter Control (ESC)
| Model | SED-CAM-SVB66 |
| Resolution | 600 TV Lines |
| Sensor | 1/3 inch SONY Super HAD ll CCD |
| Total Pixels | 811(H) x 508(V) 410K pixels (NTSC) 795(H) x 595(V) 470K pixels (PAL) |
| Effective Pixels | 768(H) x 494(V) 380K pixels (NTSC) 752(H) x 582(V) 440K pixels (PAL) |
| Scanning System | 2:1 Interlace |
| Synchronization | Internal |
| Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL) |
| S/N (Y signal) | More than 50 dB (AGC off) |
| Video Output | CVBS : 1.0Vp-p / 75ohm |
| Min. Illumination | 0 Lux at IR On |
| White Balance | ATW |
| Electronic shutter Speed |
1/60 sec ~ 1/120,000 sec (NTSC) 1/50 sec ~ 1/120,000 sec (PAL) |
| O.S.D | N/A |
| Backlight Compensation | N/A |
| Gain Control | AUTO |
| Day & Night | AUTO |
| SYNC | INTERNAL |
| Motion Detection | N/A |
| PRIVACY | N/A |
| MIRROR | N/A |
| Operating Temperature / Humidity | -10 °C~ +50 °C/ 30% ~ 80% RH |
| Storage Temperature / Humidity | -20 °C~ +60 °C/ 20% ~ 90% RH |
| POWER | DC12V Only |
| LED | 24 pcs |
| LENS | Fixed Lens 3.6mm |
Specifications & Features:
Galaxy Security is a leading manufacturer of Security Cameras Systems (CCTV) in North America. We offer technical support for all our products. We offer affordable Quality CCTV video surveillance systems, cameras and accessories for the professional installers and resellers.
At Galaxy Security, Your Security is Our Business
