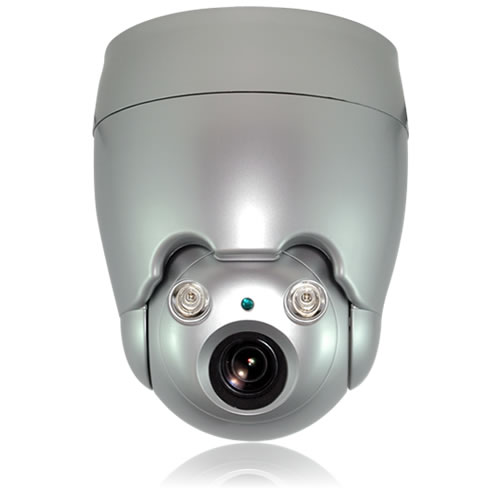

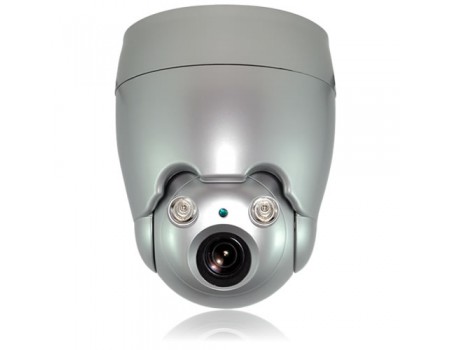

Galaxy 480TVL Mini IR Speed Dome Camera (50m IR)
Sale
Data Sheet
Product Code:
Product Code:
SED-CAM-PTZ50F
Summary:1/3" Sony Exview HAD CCD, 480TVL, 768X494, 0Lux@IR ON, 2pcs Hi-Power IR LEDs, up to 165ft (50m) IR Distance, 360.Horizontal, 94.Tilt, AGC, ESC, AWB, RS-485, 10x Optical Zoom, 4.8~48mm V/F Lens, DC12V
- PWM function,intelligent IR illumination & power consumption is variable, dependant the zoom factor
- IR distance up to 50 meters; English OSD
- Lightning protection : transient voltage 1000V
- Park Action includes Home position, 360 deg. scan/A-B scan/cruise 1-3
- 360 °continuous rotation,horizontal :50 deg./s ,Vertical :30 deg./s
- Dome ID, baud rate, communication protocol can be changed from OSD
- Supported Protocols : Pelco-D/P; Others on special request.
- Plastic housing, indoor.
| Model | SED-CAM-PTZ50F |
| Pick up Element | 1/3" Sony Exview HAD CCD image sensor |
| Number of Pixel | 768(H) x 494(V) / 752(H) x 582(V)) |
| Resolution | 480 TV lines |
| Minimum illumination | IR OFF: 0.1 Lux (F2.0) / IR ON: 0 Lux |
| IR LED | High Power 16D LED x 2 |
| IR Effective Range | Up to 50 meters |
| S/N Ratio (AGC OFF) | 50dB (AGC OFF) |
| Electronic Shutter | 1/60 (1/50) to 1/100,000 sec. |
| Lens | 10X Optical Zoom, f4.8~f48mm/F1.6 |
| Lens Angle | Tilt: 0 deg. ~ 90 deg., Pan: 0 deg.~360 deg., Zoom: 65 deg.~ 8 deg. |
| White Balance | Auto |
| AGC | Auto |
| IRIS Mode | Auto |
| Gamma correct | 0.45 |
| Video Output | BNC, 1.0Vp-p composite, 75 Ohm |
| RS485 Protocol | PELCO-D, PELCO-P |
| Baurate | 1200/ 2400/ 4800/ 9600 bps |
| Horizontal Rotaion Speed | 0.1 deg.~50 deg. /s |
| Horizontal Rotation Range | 360 deg. |
| Tilt Rotation Range | 94 deg. |
| ID | 1 ~ 255 |
| Auto Flip | Horizontal 180 deg. , Vertical 90 deg. |
| A-B Scan | User programmable |
| A-B Scan Speed | 01~64 grade |
| Dwell Preset | 05-60/s |
| Preset Point | 128 |
| Go to Preset Speed | 50 deg. /s |
| Guard Tours | 3 groups |
| Guard Points | Max. 16 points, dwell time user selectable 02-60/s |
| Park Action | Home position, 360 deg. scan, A-B scan, Guar tour 1-3 |
| Part time | 1~60 mins available |
| Power on Action | Memory as power off, 360 deg. scan, A-B scan, Guar tour 1-3 |
| Lightning protection | Transient voltage 3000V |
| Ambient light detection | Support |
| IR Illumination On | 1-15 grade selectable |
| Operating Temperature | -15 °C ~ 40 °C |
| Power Source | DC12V / 3A |
| Power Consumption | |
| Dimensions (mm)** | 130(D) x 180(L) |
| Optional | 2D Controller : UTS-1001, UTS-1002, 3D Controller : UTS-1003 |
