TRENDnet 8-Port 10/100 Mbps PoE+ Switch
Data Sheet
Product Code:
Product Code:
TPE-T80H
Summary:8 x 10/100 Mbps PoE+ ports, Up to 30 Watts per port with a 125 W total power budget, 1.6 Gbps switching capacity, Rack mount kit included, Use with TRENDnet PoE Splitter to network and power non-PoE devices

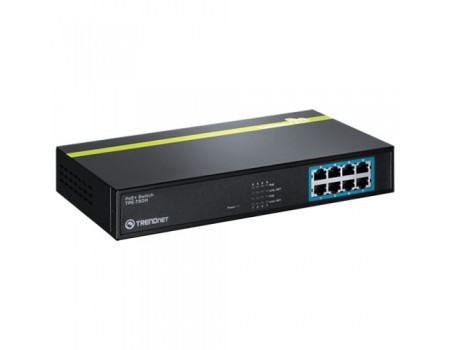

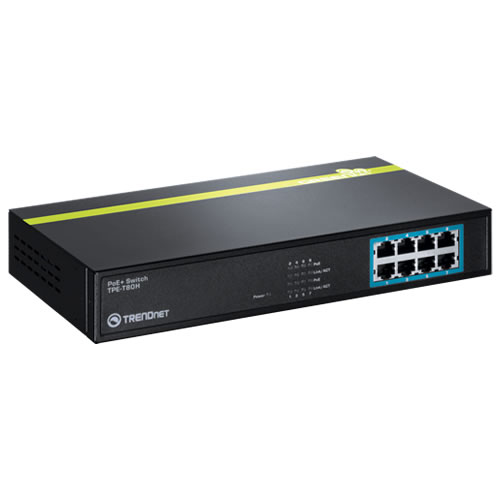

The 8-Port 10/100 Mbps PoE+ Switch, model TPE-T80H, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supplies up to 30 Watts of power per port with a 125 Watt power budget. A convenient on/off button is located on the back of the switch and a rack mount kit is included.
- 8 x 10/100 Mbps PoE+ ports
- Up to 30 Watts per port with a 125 W total power budget
- 1.6 Gbps switching capacity
- Rack mount kit included
- Use with TRENDnet PoE Splitter to network and power non-PoE devices
- Limited Lifetime Warranty
| Standards |
IEEE 802.3 |
| Device Interface | 8 x 10/100 Mbps PoE/PoE+ Ports |
| LED indicators | Power switch |
| Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) |
| Performance | Data Ram Buffer: 1.25 MB Switch Fabric: 1.6 Gbps MAC Address Table: 4K entries Forwarding rate: 1.19 Mpps (64-byte packet size) |
| Special Features | Rack mount kit included GREENnet energy saving technology |
| Power | Internal Power Supply - Input: 90-260 V AC, 50/60 Hz, 1 A - Output: 48 V DC, 50/60 Hz, 0.6 A Consumption - Max.: 130 Watts - PoE budget: 125 Watts PoE+ - pin 1,2 for power+ and pin 3,6 for power- (mode A) |
| Operating Temperature | 0 40 °C (32 - 104 °F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions | 263 x 160 x 44 mm (10.35 x 6.30 x 1.73 in.) |
| Weight | 1.8 kg (3.96 lbs.) |
| Certifications | CE FCC |
| Warranty | Limited Lifetime Warranty |
