Data Sheet

Product Code:

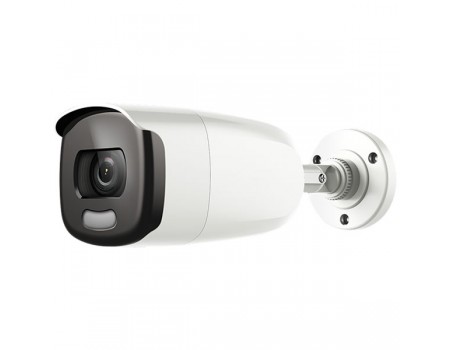

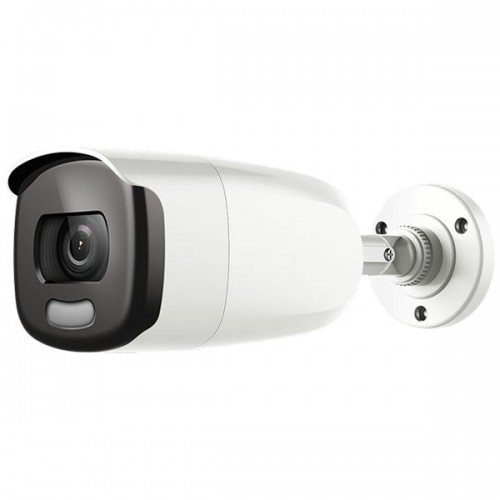

TVI9222W-CF

Summary:

2MP, 1920x1080@30fps, TVI/AHD/CVI/CVBS, 0.0005Lux@F1.0, 120dB WDR, Day&Night (ICR), IR up to 131ft (40m), OSD/UTC, IP67, 3.6mm Fixed Lens, DC12V

  • 2 MP high performance CMOS
  • 1920x1080 resolution
  • Full time color
  • 3.6 mm fixed lens
  • Up to 131ft(40 m) white light distance
  • 3D DNR, true WDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67
  • OSD menu via UTC technology with Platinum DVR
  • Junction Box Included
Camera
Image Sensor 2 MP CMOS image sensor
Resolution 1920 (H) x 1080 (V)
Frame Rate 1080p@30fps
Min. illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16x
Lens 3.6 mm fixed lens
Horizontal Field of View 83.6° (3.6 mm)
Lens Mount M16
Day & Night Color
Synchronization Internal synchronization
WDR (Wide Dynamic Range) 120 dB
Menu
AGC Yes
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable areas
WDR Yes
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart light
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 4.2 W
Protection Level IP67
Material Front Cover: Metal, Main Body: Plastic, Bracket: Metal
White Light Up to 131ft(40 m)
Communication Up the coax, TVI output
Dimensions 223.1 mm x 77.1 mm x 82.6 mm (8.78" x 3.04" x 3.25")
Weight Approx. 436 g (0.96 lb.)
