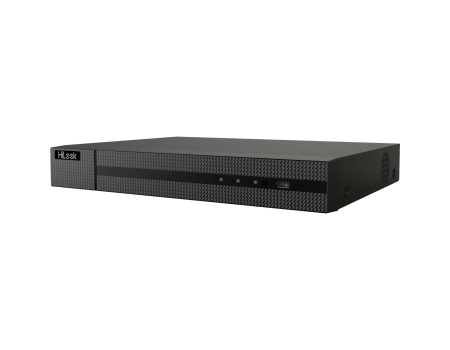

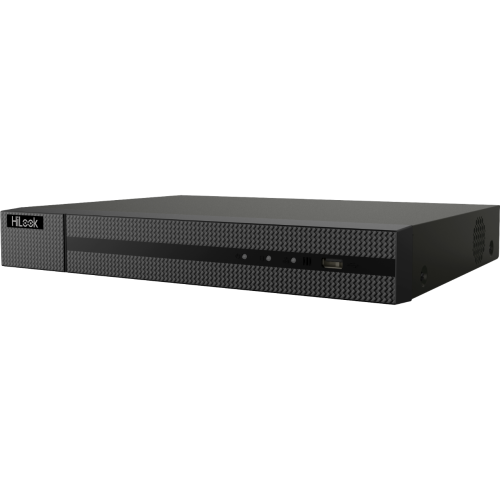

HiLook AI 4CH 4K/8MP 1x SATA Mini 1U NVR w/ 4CH PoE
HiLook AI 4CH 4K/8MP 1x SATA Mini 1U NVR w/ 4CH PoE
Data Sheet
Product Code:
Product Code:
NVR-104MH-C/4P
Summary:4CH IP up to 8MP, 40Mbps, 1x HDMI up to 4K, 1x VGA, H.265+/H.265/H.264+/H.264, 1x8MP, Human & Vehicle Detection, Audio 1in/1out, 1x RJ45 10/100/1000M, 1x SATA up to 8TB/ea, 2xUSB2.0
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 40 Mbps incoming bandwidth
- Video And Audio
- IP Video Input4-ch
- HDMI OutputHDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
- VGA Input1920*1080/60Hz?1280*1024/60Hz?1280*720/60Hz
- Incoming Bandwidth40 Mbps
- Outgoing Bandwidth80Mbps
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1k?)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264,MPEG4
- Decoding Capability1-ch @ 8 MP / 4-ch @ 1080p
- Synchronous Playback4-ch
- Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Network
- Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface4-ch
- Power</= 50 W
- StandardIEEE 802.3 af/at
- RAID
- RAID TypeNo
- Auxiliary Interface
- SATA1
- CapacityUp to 8TB capacity for each disk
- USB Interface2 × USB 2.0
- General
- Power Supply48 VDC, 1.35 A
- Consumption</= 10 W (without enabling PoE)
- Working Temperature-10 to +55° C (14 to 131° F)
- Working Humidity10 to 90 %
- Chassis1U
- Dimension (W × D × H)265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
- </= 1 kg (2.2 lb)
