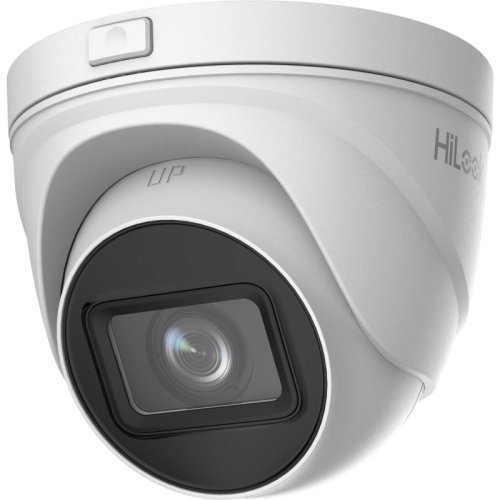

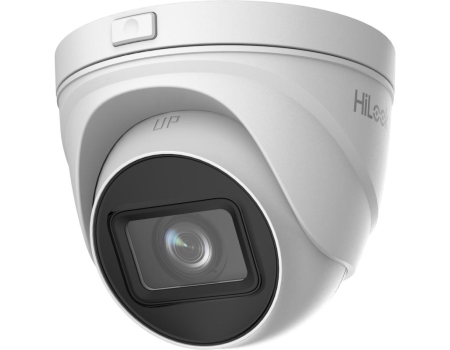

HiLook 4MP IR Motorized VF IP Turret Camera

Specifications

Camera

Image Sensor

1/3" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

No

Day &Night

IR cut filter with auto switch

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

DNR (Digital Noise Reduction)

3D DNR

WDR (Wide Dynamic Range)

120 dB

Lens

Focal Length

2.8 to 12 mm

Aperture

F1.6

Focus

Auto

FOV

Horizontal FOV 92.8° to 29°, vertical FOV 50.2° to 16.4°, diagonal FOV 109° to 32.3°

Lens Mount

14

IR

IR Range

Up to 30 m

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

H.264 Type

Baseline profile/Main profile/High profile

H.264+

Main stream supports

H.265 Type

Main profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Smart Feature-set

Region of Interest

Support 1 fixed region for main stream


Max. Resolution

2560 × 1440

Main Stream

Max. Frame Rate

50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720)

60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720)

Sub-stream

Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Enhancement

BLC/3D DNR

Image Settings

Brightness, saturation, contrast, sharpness are adjustable via web browser or client software

Day/Night Switch

Support auto, scheduled, day, night

* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream.

Network

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full

Network Storage

Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,

802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

V5.5.52

API

ONVIF(PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

HiLookVision PC Client, HiLookVision App

Web Browser

IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

General

Operating Conditions

-30 °C to 60°C (-22 °F to 140°F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%,

PoE (802.3af), class 3

Power Consumption

12 VDC, 1 A, Max. 11 W

PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max. 12.5 W

Ingress Protection

IP 67

Material

Camera body: metal, bottom base: plastic

Dimensions

Camera: Ø 129.4 mm × 116.4 mm (5.1" × 4.6")

With package: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Weight

Camera: 560 g (1.2 lb.)

With package: 850g (1.9 lb.)
