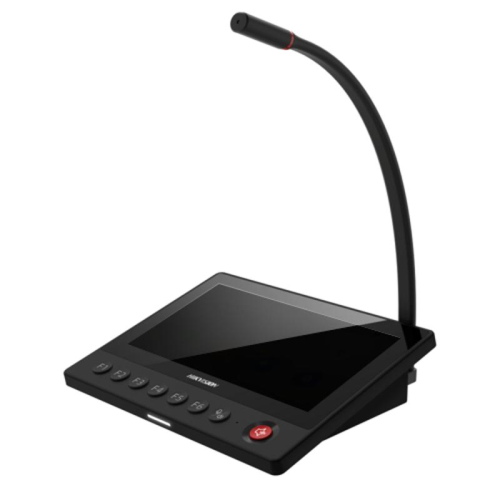

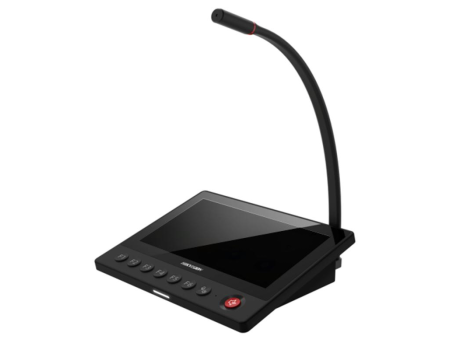

HIKVISION 7-inch paging microphone
HIKVISION 7-inch paging microphone
   0 reviews  |  Write a review
Data Sheet

Product Code:

DS-QAZ1MP7G1

Login for price
  • 7-inch color IPS touch screen, resolution: 1024 × 600
  • Support real-time broadcasting, speaking, or playing media library files on specified partitions or terminals
  • One or more terminals can be selected, and shortcut keys can be set to broadcast, up to 6 shortcut options (F1 to F6) can be defined
  • 1-channel gooseneck microphone audio input, 1-channel 4-segment 3.5 mm audio input
  • 1-channel local speaker audio output, 1-channel 3.5 mm audio output
  • Support logging in through an account and password
  • Support parameter setting, account management, system maintenance, and other operations
  • Support long press (for 3 seconds) one-key emergency call to emergency call designated terminals or all terminals

Protocol

Network Protocol

ISAPI, ISUP

Function

Audio Bit Rate

G.711U,  64 Kbps

Sampling bit width: 16 bits

Echo Cancellation

Yes

Network

Client

HikCentral Professional

Interface

Network Interface

1

Local Storage

Support TF card

Button

Physical buttons and on-screen buttons

Display Screen

IPS, 7 inches, 1024 × 600, touch screen

General

Power

12 VDC, max.10 W

System Requirement

Embedded operating system

Operating Temperature

-10 °C to +50 °C (14 °F to 122 °F)

Operating Humidity

10% to 90%
