Data Sheet

Product Code:

GX-BWC01-KIT

Summary:

Interior and Exterior Touchless activation button, RFA button and Light/Sount alarm , Simplified connections, Control panel with power supply, Door Close switch, Metal indicator sign


The GX-BWC01-KIT is designed to simply the installation and operation of the accessible washroom/restroom functions. The GX-BWC01 main control is equipped with a powerful power supply (100W max) that supplies a +12VDC and +24VDC. To simplify the installation, the main control has a none-polarized two wire BUS for connecting all slave devices (Interior, exterior, RFA, PTL buttons and RFA alarm). The BUS provides power and synchronization to all slave devices, and allows all devices to communicate together. One of the new features available in this kit is "Automatic lock", which simplifies the washroom/restroom locking function. This feature is enable by default but can be disabled during the installation and an optional push to lock button can be installed. All signs in the GX-BWC01-KIT are written in the Canadian official languages.

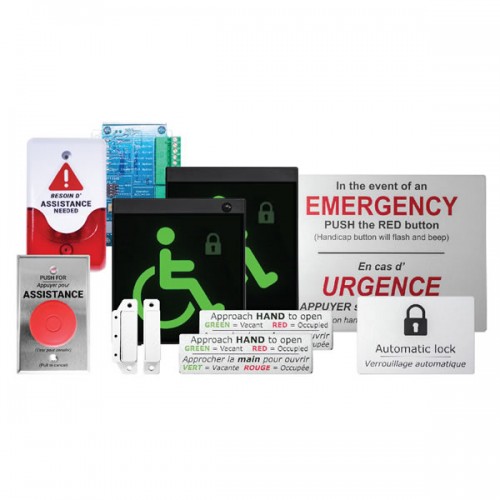

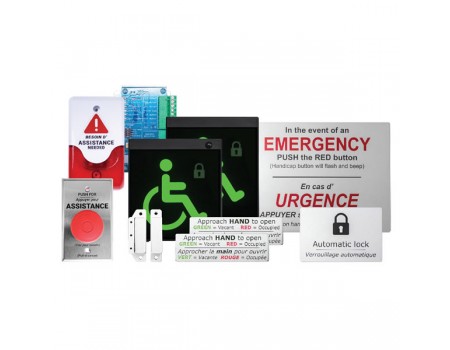

  • 1x Control panel (with power supply)
  • 1x Exterior touchless button with mounting plate and sign
  • 1x Interior touchless button with mounting plate and sign
  • 1x RFA button (Request for assistance) with "Emergency" sign
  • 1x RFA (Request for assistance) alarm
  • 1x Door close switch
  • 1x "Automatic lock" door sign


Control Panel
Features
  • Power supply included (+12V and +24V)
  • Inputs and outputs for old installations
  • RFA remote alarm output
  • Visual indicators
  • No mechanical relays
  • Reversible lock output
  • Simplified connections (Two wire BUS)
  • Small (Fits in automatic door operator)
Dimensions 4.5 x 3 x 2.4 inches (112 x 76 x 61 mm)
Exterior light/activation Touchless Button
Features
  • Touchless activation button
  • Handicap icon illuminated, Green when washroom is available, Red when occupied
  • Lock icon visible when door is locked
  • Selectable beeper
  • Simplified connections (Two wire BUS)
  • Fits on a 2X4 or 4X4 electrical box
  • Low profile 25mm
Dimensions 5.7 x 5.25 x 1 inches (145 x 133 x 25 mm)
Interior light/activation Touchless Button
Features
  • Touchless activation button
  • Selectable automatic lock (On-board motion sensor)
  • Handicap icon illuminated, Green - available Red - occupied
  • Lock icon visible when door is locked
  • Selectable beeper
  • Interior RFA Alarm (Light and sound)
  • Simplified connections (Two wire BUS)
  • Fits on a 2X4 or 4X4 electrical box
  • Low profile 25mm
Dimensions 5.7 x 5.25 x 1 inches (145 x 133 x 25 mm)
RFA (Request for assistance) switch
Features
  • Push/Pull switch
  • Fits on a 2X4 electrical box
  • Simplified connections (Two wire BUS)
  • Stainless steel wall plate
Dimensions 4.5 x 2.75 x 1.5 inches (115 x 70 x 38 mm)
RFA (Request for assistance) alarm
Features
  • Light and sound
  • Selectable steady or flash function for lights
  • Fits on a 2X4 electrical box
  • Simplified connections (Two wire BUS)
Dimensions 4.8 x 2.9 x 1.8 inches (122 x 74 x 46 mm)
Door close switch
Features
  • Magnetic device
  • Signals the main control when the door is fully closed
Dimensions -
