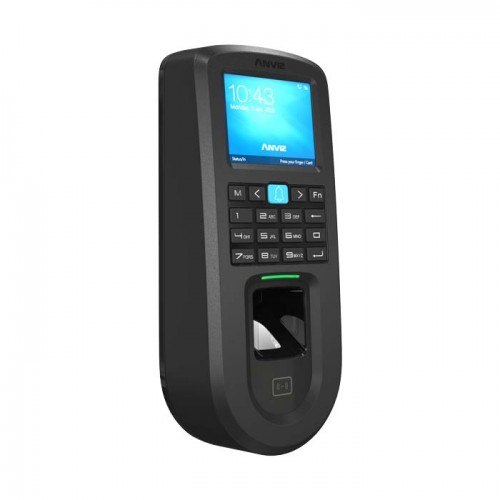

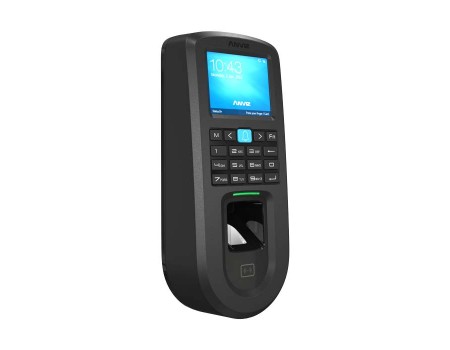

Vf30 Pro Is The New Generation Standalone Access Control Reader EquippedWith Linux Based 1ghz Processor, 2.4
Data Sheet
Product Code:
Product Code:
GX-VF30-PRO
Summary:VF30 pro is the new generation standalone access control reader equipped with Linux based 1Ghz processor, 2.4" TFT LCD screen and flexible POE and WIFI communication. VF30 pro also supports webserver function ensuring easily self management and professional standalone access control interfaces. An standard EM card reader is also equipped onto the device.
High Speed Fingerprint Matching
Powered by Anviz’s latest fingerprint recognition algorithm and range-leading 1GHz quick CPU, VF30 Pro provides the world’s fastest matching speed of up to 3,000 match/sec.
Massive Memory Capacity
VF30 Pro offers a massive memory capacity to manage largest number of users. A single unit of VF30 Pro can accommodate up to 3,000 users, 3,000 cards and 100,000 logs.
3,000 Users
3,000 Cards
100,000 Logs
Power over Ethernet
VF30 Pro supports a seamless power sourcing over Ethernet cable(CAT5/6) without any degrading network performance and reach. Anviz’s PoE featured devices compliance to IEEE802.3af standard, to provide users with lower installation cost, simpler cabling and lower maintenance cost.
Versatile Interfaces
VF30 Pro comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485,Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices.
Freedom Infinite
VF30 Pro supports WiFi mode by optional, to provide users with lower installation cost, simpler configration and lower maintenance cost.
| Fingerprint Capacity | 3,000 | |
| Card Capacity | 3,000 | |
| Log Capacity | 100,000 | |
| Comm | TCP/IP, RS485, POE (Standard IEEE802.3af), Optional WiFi | |
| Relay | Relay Output (COM, NO, NC ) | |
| I/O | Door Sensor, Exit Button, Door Bell,Wiegand in/out, Anti-pass Back | |
| Identification Mode | Finger, Password, Card | |
| Identification Speed | <0.5s | |
| Card Reading Distance | 1~5cm ( 125KHz), 13.56MHz <2CM ) for Standard CR80 Card |
|
| Image Display | Support | |
| Time Attendance Mode | 8 | |
| Group, Time Zone | 16 Droup, 32 Time Zone | |
| Work Code | 6 Digit | |
| Short Message | 50 | |
| WebServer | Support | |
| Daylight Saving | Support | |
| Voice Prompt | Support | |
| Clock Bell | 30 Groups | |
| Software | Anviz CrossChex | |
| CPU | 1GHz Quick CPU | |
| Sensor | Touch Active Sensor | |
| Scanning Area | 22*18mm | |
| RFID Card | Standard EM, Optional Mifare | |
| Display | 2.4" TFT LCD | |
| Dimensions(W * H * D) | 80 * 180 * 40mm | |
| Working Temperature | -30?~ 60? | |
| Humidity | 20% to 90% | |
| PoE | Standard IEEE802.3af | |
| Power | DC12V 1A | |
| IP Grade | IP55 | |
