Data Sheet

Product Code:

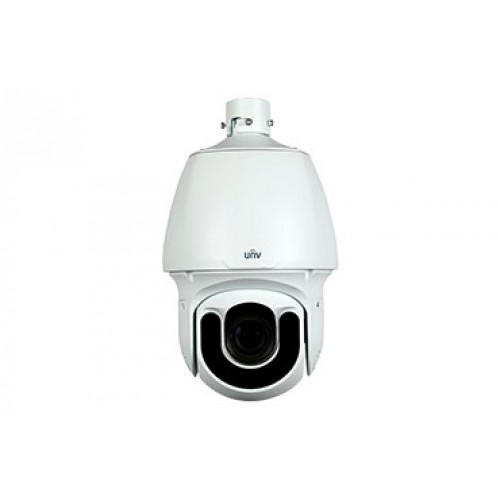

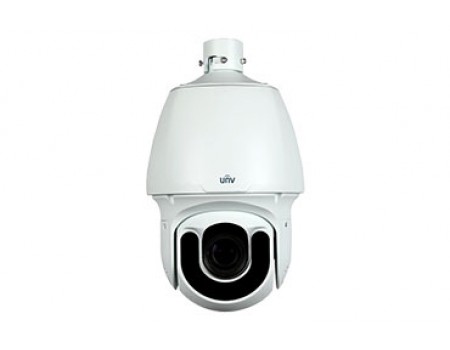

IPC6258SR-X22P

Summary:

12MP, IP66, HLC, 22X optical zoom, -40-70°, 200m IR,Smart functions, DIS

Optics

* 22X Optical Zoom

* Fifth-generation infrared technology, more than200m (656 ft) IR distance

* IR anti-reflection window to increase the infrared transmittance

* Optical glass window with higher light transmittance

* Smart IR

* EIS (Electronic Image Stabilization)

Compression

* 12 Megapixel image

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* Customized OSD

Network

* ONVIF Conformance

Structure

* Innovative snow-removing functionality

* Intelligent temperature control technology

* More effective heat dissipation system

* 6 KV surge protection designed for network interface


IPC6258SR-X22P
Camera
Sensor1/1.7", progressive scan, 12.0megapixel, CMOS
Lens6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens
Angle of View (H)56.7° (wide) ~ 3.07° (tele)
ShutterAuto/Manual, shutter time: 1/6 s ~ 1/100000 s
Minimum IlluminationColour: 0.06 lux (F1.5,AGC ON) 0 lux with IR
IrisAuto/Manual, F1.5 ~ F3.4
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>55 dB
IR RangeUP to 200m (656ft)
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:12 MP(4000×3000):Max.20 fps8MP(3840 × 2160): Max.25fps, 2MP(1920×1080)@30fps?
Sub Stream:2MP(1920×1080) : Max. 30fps?
Third Stream: D1 (720×576): Max. 30fps
HLCSupported
BLCSupported
EISSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cros line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way AudioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G), API
Pan & Tilt
Pan Range360°
Pan Speed0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range–15° ~ +90° (auto reverse)
Tilt Speed0.1° ~ 160°/s
Preset speed: 240°/s
Number of Presets1024
PatrolPreset patrol, route patrol, recorded patrol
Home PositionSupported
Interface
Audio I/OAudio cable
1 Input: impedance 35 k?; amplitude 2 V [p-p]
1 Output: impedance 600; amplitude 2 V [p-p]
Alarm I/O2 / 1
Serial Port1 RS485
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75; amplitude 1 V [p-p]
General
Power24 V AC±25% (Default), 24 V DC±25%, PoE(PSE Required)
Power consumption: 8~52.5W
Dimensions (Ø x H)Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight5.5 kg (12.1 lb)
Working Environment–40°C ~ +70°C (-40°F ~ 158°F), Humidity: 10%~95% RH(non-condensing)
Ingress ProtectionIP66
Reset ButtonSupported
