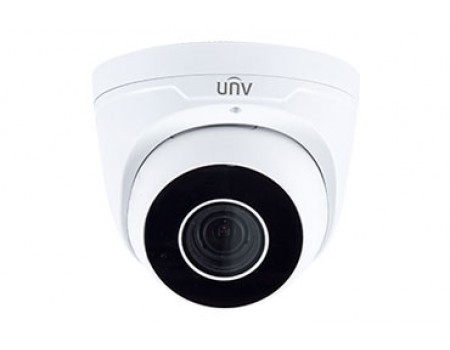

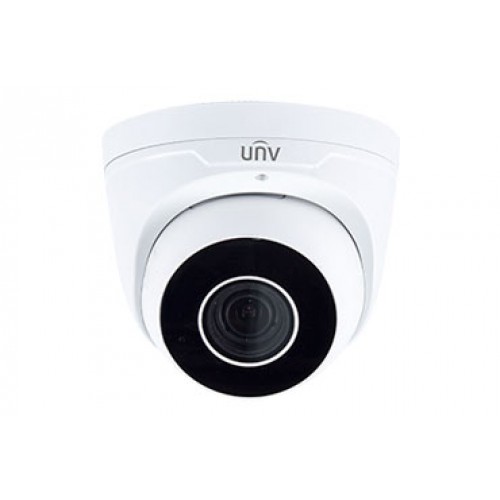

4MP WDR (Motorized) VF Eyeball Network IR Camera
4MP WDR (Motorized) VF Eyeball Network IR Camera
   0 reviews  |  Write a review
Data Sheet

Product Code:

IPC3634ER3-DPZ28

Summary:

4MP WDR VF Eyeball Network IR Camera • 1/3″,progressive scan,CMOS • Up to 2592×1520 resolution,20fps • 2.8~12 mm • Smart IR, up to 30m(98 ft) IR distance • 2D/3D DNR, ROI, 9:16 corridor mode • Ultra 265,H.265,ONVIF • DC12V,PoE.Wide voltage range of ±25% • IP67

Login for price

This item is discontinued and replaced by IPC3634ER3-DPZ28-G

Optics

* Day/night functionality

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* Smart IR, up to 30 m (98 ft) IR distance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC3634ER3-DPZ28
Camera
Sensor1/3", progressive scan,4.0 megapixel, CMOS
Lens2.7~12mm,AF automatic focusingand motorized zoom lens
Angle of view(H)91.0°~27.0°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.01 Lux (F1.4, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:4MP (2592×1520): Max. 20 fps4MP (2560×1440): Max. 25 fps3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible IntegrationONVIF(Profile S, Profile G),API
Interface
Built-in MicSupported
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 8.16W
Dimensions (Ø x H)129 x 110 mm (Ø5.08” x 4.3”)
Weight0.67 kg (1.48lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
