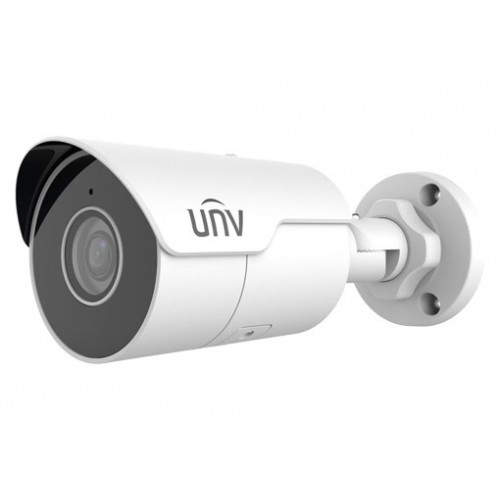

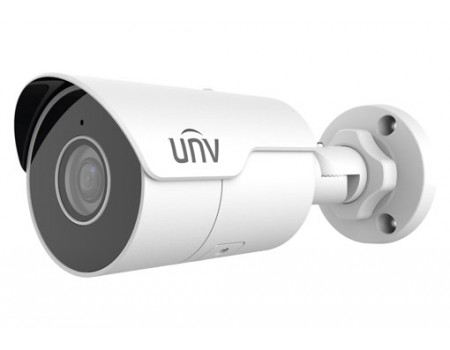

NDAA Galaxy Pro Starlight 4K Mini Fixed Bullet AI (Human & Vehicle) Network Camera with Build in Mic

SC-2083-IGS-F28M

SC-2083-IGS-F40M

Camera

Sensor

1/2.7", 8.0 megapixel, progressive scan, CMOS

Minimum Illumination

Support LightHunter: Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1~1/100000 s

Adjustment angle

Pan: 0° to 360° ,Tilt: 0° to 90° ,Rotate: 0° to 360°

S/N

>56dB

WDR

120dB

Lens

Lens Type

2.8mm and 4.0mm @1.6, Fixed-focal

Lens Mount

M12

Angle of View (H)

112.9°

91.2°

Angle of View (V)

59.1°

47.9°

Angle of View (D)

121.2°

95.9°

DORI

DORI Distance

Lens

Detect(m)

Observe(m)

Recognize(m)

Identify(m)

2.8mm

84

33.6

16.8

8.4

4.0mm

120

48

24

12

Illuminator

IR Range

Up to 50m (164 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline Profile, Main Profile, High Profile

Frame Rate

Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Supported

9:16 Corridor Mode

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting

Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

Defog

Digital Defog

Events

Basic Detection

Cross line, intrusion(based on human body detection)

motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation EZView EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Network

1 * RJ45 10M/100M Base-TX Ethernet

Built-in Mic

Supported

Certification

EMC

FCC: FCC Part 15

Safety

CE: EN 60950-1 UL: UL60950-1 IEC 60950-1

General

Power

12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 6.5W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions (L × W × H)

190×73×71mm (7.5”×2.9”×2.8”)

Weight

0.45kg (0.99lb)

Material

Metal

Working Environment

-30°C ~ +60°C (-22°F ~ 140°F), Humidity: </=95% RH(non-condensing)

Strorage Environment

-30°C ~ +60°C (-22°F ~ 140°F), Humidity: </=95% RH(non-condensing)

Surge Protection

4KV

Reset Button

Supported

Ingress Protection

Ingression protection: IP67
