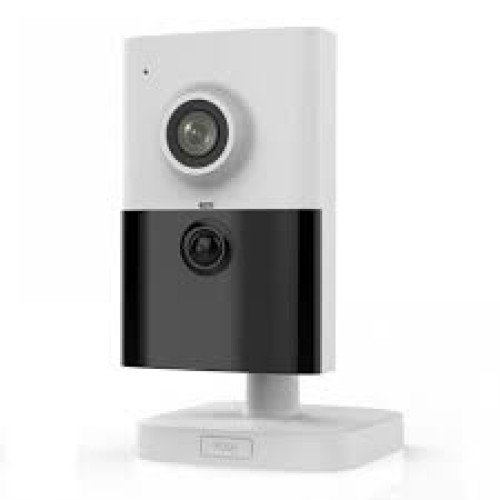

Galaxy Platinum 4MP IR Fixed IP Cube Camera

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

WDR

120 dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 2.8/4/6 mm

Aperture

F1.6

FOV

2.8 mm: Horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°

4 mm: Horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°

6 mm: Horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°

Lens Mount

M12

Illuminator

IR Range

Up to 30 m

Wavelength

850 nm

Video

Max. Resolution

2688 × 1520

Main Stream

50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Video Compression

Main stream/third stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Audio(-U)

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Smart Event

Line crossing detection, intrusion detection and face detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Linkage Method

Trigger recording: memory card, network storage, pre-record and post-record

Trigger captured pictures uploading: FTP, HTTP, NAS, Email

Trigger notification: HTTP, ISAPI, Email

Region of Interest

1 fixed region for main stream and sub-stream


Image Enhancement

BLC, HLC, 3D DNR

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Day/Night Switch

Day/Night/Auto/Schedule

Network

Network Storage

microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users, 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

Local Service: Chrome 41.0+, Firefox 30.0+

Interface

Communication Interface

1 RJ45 100M self-adaptive Ethernet port

Audio (-U)

1 audio input (built-in microphone), mono sound

Video Output

No

Interface Style

Pigtail style interface

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

General

Web Client Language

32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General Function

Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Reset

Reset via reset button on camera body, web browser and client software

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W

Material

Metal

Dimensions

Camera: 127.3 × 95.9 mm (5" × 3. 8")

With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

Weight

Camera: Approx. 635 g (1.4 lb.)

With package: Approx. 890 g (1.96 lb.)

Approval

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Chemistry

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protection

Ingress protection: IP66 (IEC 60529-2013)
