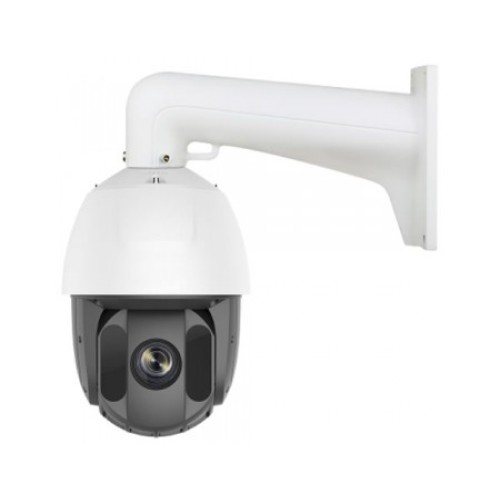

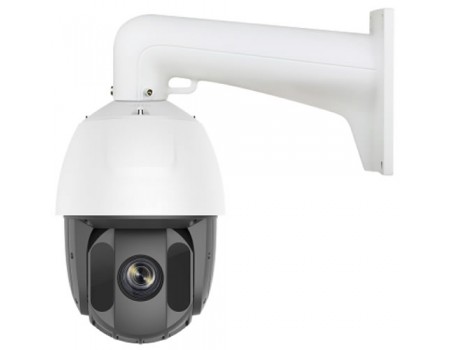

Galaxy Platinum 2MP IR HD-TVI Dome Camera
Data Sheet
Product Code:
Product Code:
AP112-IR/25X
Summary:2MP, 1920x1080@30fps, 0.005Lux, DWDR, Day & Night, 0.05Lux@F1.6, IR LEDs Up to 100m, BNC, 4-92.0mm 23X Optical Zoom Lens, 12VDC, IP66
• 1/3" Progressive Scan CMOS
• 1920x1080
• 23X Optical Zoom
• DWDR
• Up to 100m IR distance
• 3D intelligent positioning function
• Support Turbo HD and BNC output
| Image Sensor | 1/3’’ Progressive Scan CMOS |
|---|---|
| Max. Image Resolution | Color: 0.05Lux@( F1.6,AGC ON); B/W: 0.005Lux@( F1.6,AGC ON), 0 Lux with IR |
| Max. Image Resolution | 1920 x 1080 |
| Focal Length | 4-92.0mm, 23x |
| Digital Zoom | 16X |
| Zoom Speed | Approx.3s(Optical Wide~Tele) |
| Angle of View | 49-2.2 degree(Wide-Tele) |
| Min. Working Distance | 10~1,000mm(Wide~Tele) |
| Aperture Range | F1.4-F3.5 |
| Focus Mode | Auto / Semiautomatic / Manual |
| DWDR | Support |
| S / N Ratio | ?50dB |
| Shutter Time | 1-1/10,000s |
| AGC | Auto / Manual |
| White Balance | Auto / Manual / ATW / Indoor / Outdoor |
| Day & Night | IR Cut Filter |
| Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
| Enhancement | 3D DNR, BLC, EIS |
| Range | Pan:360° endless; Tilt: -15°~90°(Auto Flip) |
| Speed | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/ |
| Number of Preset | 256 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 patterns, with the total recording time not less than 10 minutes |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan |
| Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan |
| RS-485 communication diagnosis | Support |
| IR Distance | Up to 100m |
| IR Intensity | Automatically adjusted, depending on the zoom ratio |
| Turbo HD Output | 1 turbo HD720P/1080P output, 1.0V[p-p] / 75 , NTSC (or PAL) composite, BNC |
| CVBS Output | 1.0V[p-p] / 75?, NTSC (or PAL) composite, BNC |
| RS-485 Interface | Half-duplex mode |
| Menu Language | English |
| Power | 12VDC, Max.18W |
| Working Temperature / Humidity | -30 °C-65°C(-22°F-149°F) 90% or less |
| Protection Level | IP66 standard TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimensions | ?164.5(mm)×295(mm) |
| Weight (approx.) | 2Kg (4.41Ibs) |
