Data Sheet

Product Code:

MD7560

Summary:

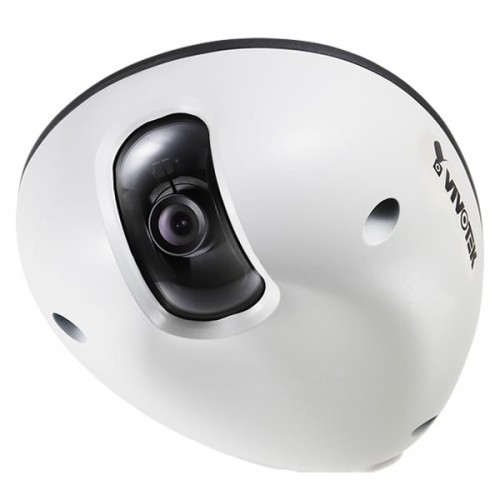

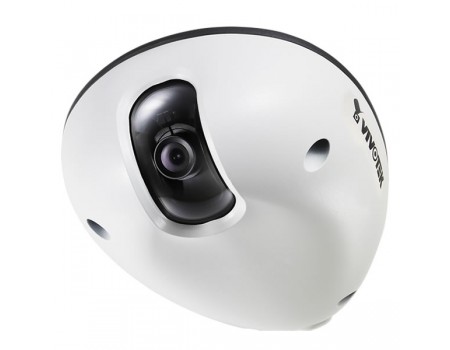

Outdoor or Mobile Surveillance, 1600x1200(2MP), Dual(MPEG-4/MJPEG), 30 fps @ 800x700, 15 fps @1600x1200, 1/3.2" CMOS, Audio, IP66, MicroSD Slot, 2.8mm Fixed Lens, PoE

System CPU: Mozart 120 SoC
Flash: 16MB
RAM: 128MB + 128MB
Embedded OS: Linux 2.6
Lens Board lens, f = 2.8 mm, F2.0, Fixed
Angle of View 98deg.(horizontal)
73deg.(vertical)
122deg.(diagonal)
Shutter Time 1/5 sec. to 1/40,000 sec.
Image Sensor 1/3.2" CMOS sensor in 1600x1200 resolution
Minimum
Illumination
0.6 Lux / F2.0
Video Compression: MJPEG & MPEG-4
Streaming:
Multiple simultaneous streams
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic
frame rate control
Supports video cropping for bandwidth saving
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
MPEG-4:
Up to 30 fps at 800x600
Up to 20 fps at 1280x720
Up to 10 fps at 1600x1200
MJPEG:
Up to 30 fps at 1280x720
UP to 15 fps at 1600x1200
Image Settings Adjustable image size, quality and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation,
sharpness, white balance and exposure
AGC, AWB, AES
BLC (Backlight Compensation)
Supports privacy masks
Audio Compression:
GSM-AMR speech encoding,
bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding,
bit rate: 16 kbps to 128 kbps
Interface:External microphone input
Supports audio input via SIP protocol
Supports audio mute
Networking 10/100 Mbps Ethernet
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP, FTP,DHCP, NTP, DNS,
DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and
Event Management
Triple-window video motion detection
Tamper detection
Temperature alarm trigger
One D/I for external sensor
Event notification using HTTP, SMTP or FTP
Local recording of MP4 file
On-Board Storage MicroSD/SDHC card slot
Stores snapshots and video clips
Security Muilti-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for
network protection
Users Live viewing for up to 10 clients
Dimension 130 mm (D) x 107 mm (W) x 47 mm (H)
Weight Net: 450 g
LED Indicator System restore status indicator
Power Power consumption:
Max. 4.3 W Max.
7.5 W (with heater)
802.3af compliant Power-over-Ethernet (MD7560)
DC 12~36V Input (MD7560D)
Housing Vandal-proof metal housing
Weather-proof IP67-rated housing
Approvals CE, LVD, FCC, VCCI, C-Tick
EN50155
Operating
Environments
Temperature: -25 ~ 50 °C (-13 ~ 122 °F)
Humidity: 90% RH
Viewing System
Requirements
OS: Microsoft Windows 7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation,
Management,
and Maintenance
Camera angle adjustment: Tilt 90deg.(0deg.~ 90deg.)
Rugged M12 connector
Installation Wizard 2
32-CH ST7501 recording software
Supports firmware upgrade
Applications SDK available for application development
and system integration
Warranty 24 months

Specifications & Features

130 mm (D) x 107 mm (W) x 47 mm (H)
Compression: MJPEG & MPEG-4
Streaming:
Multiple simultaneous streams
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic
frame rate control
Supports video cropping for bandwidth saving
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
MPEG-4:
Up to 30 fps at 800x600
Up to 20 fps at 1280x720
Up to 10 fps at 1600x1200
MJPEG:
Up to 30 fps at 1280x720
UP to 15 fps at 1600x1200
