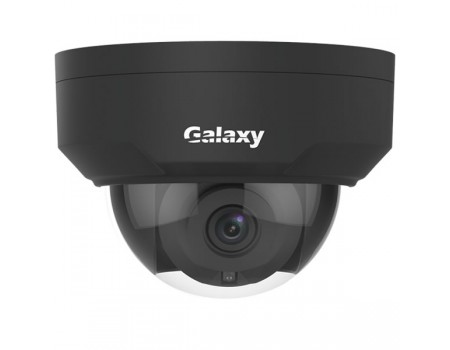

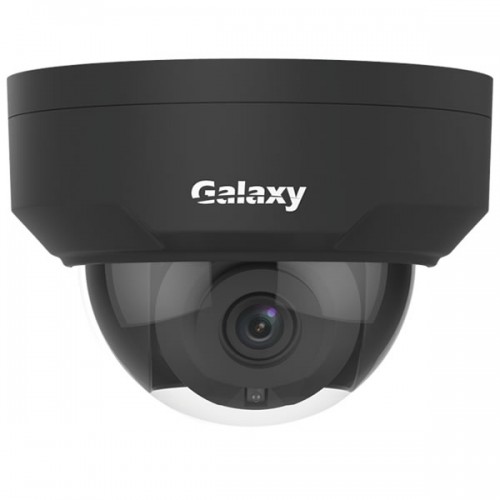

Galaxy Pro 5MP Starlight IR Dome IP Camera - 2.8mm Black
Data Sheet
Product Code:
Product Code:
GX745FSL-IR28B
Summary:5MP, 2592x1944@25fps, 0.005 Lux Starlight, 120dB WDR, Ultra265, Triple Streams, Day&Night(ICR), IR up to 98ft (30m), Smart Function, Micro SD Card Slot, Alarm, Audio, IP67, IK10, 2.8mm Fixed Lens, DC12V, PoE
- Starlight illumination
- Day/night functionality
- SmartIR, up to 30 m (98 ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- ROI (Region of Interest)
- Customized OSD
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP67
Camera | |
Sensor | 1/2.7",progressive scan,5.0 megapixel, CMOS |
Lens | 2.8 mm@F1.6 |
DORI Distance | Lens: 2.8mm, Detect(m): 63, Observe(m): 25.2, Recognize(m): 12.6, Identify(m): 6.3 |
Angle of View (H) | 105.3° |
Angle of View (V) | 69.5° |
Angle of View (O) | 136.8° |
Adjustmentangle | Pan: 0°~360° Tilt: 0°~90° Rotate:0°~360° |
Shutter | Auto/Manual, 1/6~1/100000 s |
Minimum Illumination | Colour: 0.005 Lux (F1.6, AGC ON) 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | >52 dB |
IR Range | Up to 30m (98 ft) IR range |
Defog | Digital Defog |
WDR | 120dB |
Video | |
Video Compression | Ultra 265,H.265, H.264,MJPEG |
H.264 code profile | Baseline profile, Main Profile, High Profile |
Frame Rate | Main Stream: 5MP(2592 x 1944): Max.20 fps, 5MP(2592 x 1944): Max.25 fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps; Sub Stream:2MP(1920 x 1080): Max.30 fps; Third Stream: D1(720 x 576): Max.30 fps; |
HLC | Supported |
BLC | Supported |
9:16 Corridor Mode | Supported |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
Smart | |
Behavior Detection | Intrusion, cross line, motion detection |
Intrusion | Enter and loiter in a pre-defined virtual region |
cross line | Cross a pre-defined virtual line |
motion detection | Moving within a pre-defined virtual region |
Recognition: | Face detection?Audio detection |
Intelligent Identification | Defocus, Scene Change |
Statistical Analysis | People counting |
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio | |
Audio Compression | G.711 |
Two-way audio | Supported |
Suppression | Supported |
Sampling Rate | 8 KHZ |
Storage | |
Edge Storage | Micro SD, up to 128 GB |
Network Storage | ANR |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
Compatible Integration | ONVIF(Profile S, Profile G), API |
Interface | |
Audio I/O | 2 Input: impedance 35 k?; amplitude 2 V [p-p] |
1 Output: impedance 600 ?; amplitude 2 V [p-p] | |
Alarm I/O | 1/ 1 |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
General | |
Power | 12 V DC±25%, PoE (IEEE802.3 af) |
Power consumption: Max.8.7W | |
Dimensions (Ø x H) | ?108.5 x 81 mm (Ø4.28” x 3.2”) |
Weight | 0.45 kg (0.99 lb) |
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
Ingress Protection | IP67 |
Vandal Resistant | IK10 |
Junction Box
GX-BK-JB82XB
Wall Mount
GX-BK-WM02DB
