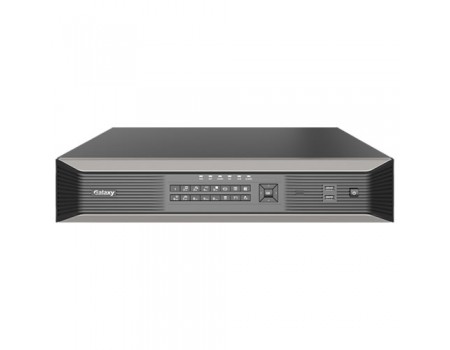

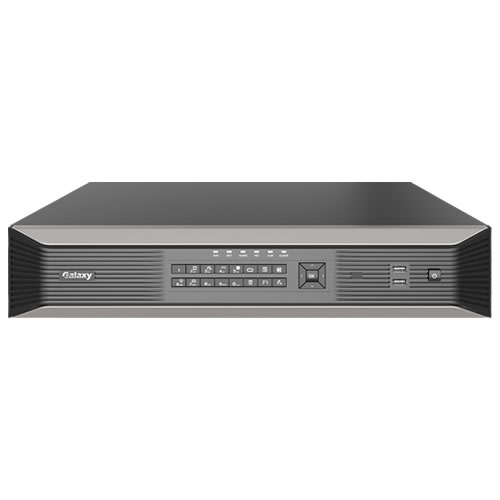

Galaxy Pro 32CH AI NVR with 16PoE
Galaxy Pro 32CH AI NVR with 16PoE
   0 reviews  |  Write a review
Data Sheet

Product Code:

NVR8432-P16N

Summary:

320MBPS / 4K HDMI/VGA / Up to 12MP Recording / Audio / H.265 Ultra / 4 SATA up to 10TB each / Smart Detection / People Counting / SMD (Human & Vehicle) by Camera / Audio / 1 RJ45 up to 1000M / RAID1,5 / Support fisheye dewarping, LPR, POS

Login for price

  •  Support Ultra H.265/H.265/H.264 video formats

     16/32-channel input

     Plug & Play with 16 independent PoE network interfaces

     Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

     Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution

     HDMI and VGA independent outputs provided

     Up to 12 Megapixels resolution recording

     4 SATA HDDs, Up to 10TB for each HDD

     Support RAID 1, 5

     Various fisheye dewarping modes for live view and playback for both web interface and GUI

     ANR technology to enhance the storage reliability when the network is disconnected

     Support cloud upgrade

Video/Audio Input
IP Video Input16-ch32-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth320Mbps
Outgoing Bandwidth320Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
BrowserIE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA OutputVGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz,1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI:
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Audio CompressionG.711A, G.711U
Synchronous Playback16-ch
Live View Display1/4/6/8/9/161/4/6/8/9/16/25/36
Corridor Mode Screen3/4/5/7/9/10/12/163/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot16-ch snapshot, up to 1080P resolution
Decoding
Decoding FormatUltra 265, H.265, H.264
Live View/Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 16 x 720P@301 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1
Hard Disk
SATA4 SATA interfaces
Capacityup to 10TB for each HDD
eSATANA
Disk GroupSupport
RAIDRAID 1,5
Smart
VCA Detection by CameraIntrusion Detection, Cross Line Detection, Enter Area, Leave Area,  Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA SearchBehavior Search, Vehicle Search
People CountingPeople Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection by CameraTotal 8-ch
General Alarm
General AlarmMotion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB InterfaceFront panel: 1 x USB2.0,Rear panel: 1 x USB3.0
RS232NA
RS4851
Alarm In16-ch
Alarm Out4-ch
PoE
Interface16 RJ-45 10M/100M self-adaptive Ethernet Interface
Max PowerMax 30W for single port
Max 150W in total
Supported StandardIEEE 802.3af/at
General
Power Supply100~240V AC
Power Consumption: </= 20 W (without HDD)
Working Environment-10°C~+ 55°C (+14°F~+131°F), Humidity </= 90% RH (non-condensing)
Dimensions (W×D×H)400mm × 363mm × 74mm (15.7" × 14.3"× 2.9")
Weight (without HDD)</=4Kg (8.82lb)
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCCPart15 Subpart B, ANSI C63.4
