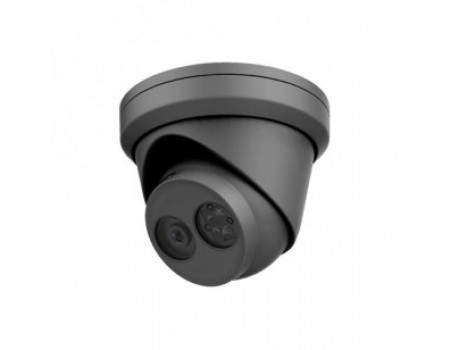

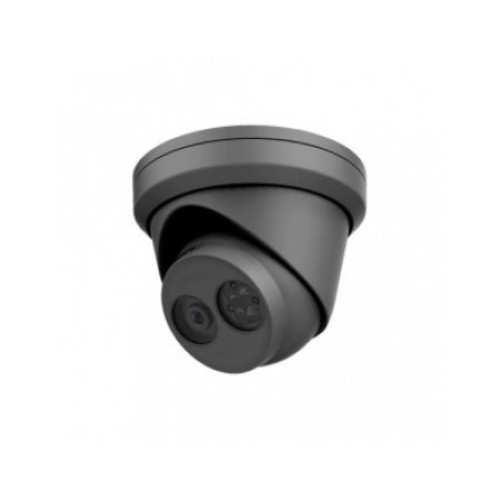

8MP 4K IP Turret Camera Black 2.8mm lens
8MP 4K IP Turret Camera Black 2.8mm lens
   0 reviews  |  Write a review
Data Sheet

Product Code:

NC328-XD/28B

Summary:

8MP, 3840 × 2160@15fps, WDR 120dB, Day & Night, IR up to 100ft(30m), Built‐in microSD, 2.8 mm fixed lens, 12 VDC, PoE , IP67

Login for price
  • Up to 8 megapixel high resolution
  • Max. 3840 × 2160 @15fps
  • 2.8 mm fixed lens
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • 12 VDC & PoE (802.3af)
  • IR range: up to 30 m
  • Support on?board storage, up to 128 GB
  • 3?Axis Adjustment
  • IP67

Camera


Image Sensor 1/2.5" Progressive Scan CMOS
Electronic Shutter Speed 1/3 s to 1/100,000 s
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
IR Range Up to 30 m
Lens 2.8 mm, horizontal field of view: 102° 4 mm, horizontal field of view: 79° 6 mm, horizontal field of view: 50° 8 mm, horizontal field of view: 40° 12 mm, horizontal field of view: 23°
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Auto iris F2.0
Slow Shutter Support

Video
Video Bit Rate 32 Kbps to 16 Mbps
Region of Interest Support 1 fixed region for main stream and sub stream separately
H.264+ Supports
H.265 Type Main Profile
H.265+ Supports
Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection Human face appears in the image can be detected and trigger linkage method
Third Stream 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Sub-Stream 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240)
Main Stream 50Hz: 15fps (3840 × 2160), 25fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15fps (3840 × 2160), 30fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)

Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
General Function One-key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter

Max. Resolution 3840 × 2160
Wide Dynamic Range 120dB
Image Settings Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Day/night Switch Auto/Scheduled
Image Enhancement BLC/3D DNR

Interface
On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB

General
Power Supply 12 VDC ± 25%, 6.5 W PoE(802.3af, 42.5 – 57V, class 3), 8.5 W
Dimensions Camera: Φ 127.3 × 95.9 mm (5.01" × 3.78") Package: 150 × 150 × 141 mm (5.91" × 5.91" × 5.55")
Weight Camera: 620 g (1.37 lb.)
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Protection (General) IP67
