Alarm Box
Data Sheet
Product Code:
Product Code:
GX-HT-ARB1606
Summary:Support Through Rs485 Access To Nvr&xvr, Support 16ch Alarm In/6ch Alarm Out Interface, Support 2-bit Dip Switch (0/1) To Determine The Different Alarm Box Access; Max Support 4 Alarm Boxes Having Access To The Back-end Storage Device, Supp

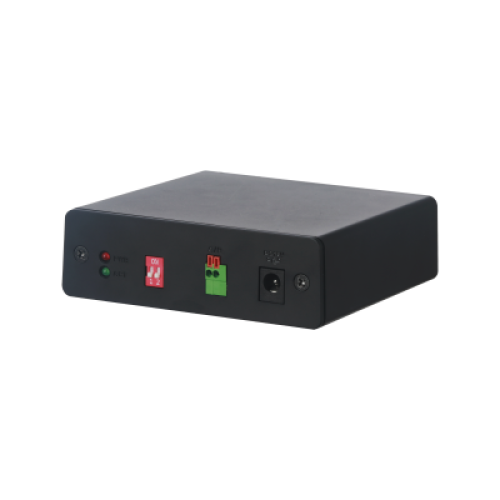

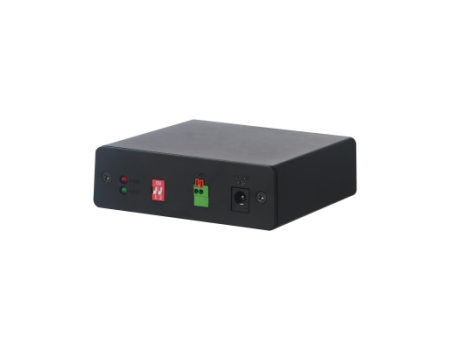

Alarm Box
> Support through RS485 access to NVR&XVR
> Support 16ch Alarm In/6ch Alarm Out interface
> Support 2-bit DIP switch (0/1) to determine the different alarm box access; Max support 4 alarm boxes having access to the back-end storage device
> Support universal 12V power supply; Support using a separate adapter or through 1 to 2 power cable using the DVR adapter to supply the alarm box with power
> The front panel has a power indicator (PWR) which maintains lightening when the device is powered up; The front panel has a signal communication indicator (ACT) which lights up every 1 second when the communication is established between the alarm box and XVR/NVR equipment.
> Linked alarm can be configured on the alarm input and output interface when the communication is established between XVR/NVR device and the alarm box.
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication |
1 RS485 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
DIP Switch |
2-bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm In |
16ch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Out |
6ch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12V/1A (or use 1 to 2 power cable to use the DVR power) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
0.2W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-10°C ~ +55°C (+14°F ~ +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%~ 90% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Construction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
97.68mm×90.3mm×33mm (3.85" x 3.56" x 1.3") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
</=0.2kg(0.44lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop installation |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
FCC: Coming Soon |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CE:Coming Soon |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
UL:Coming Soon |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
