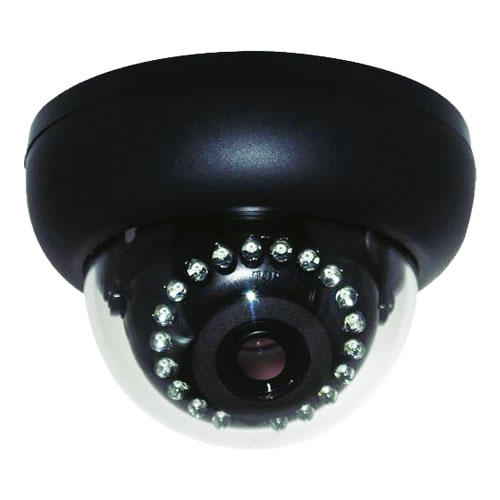

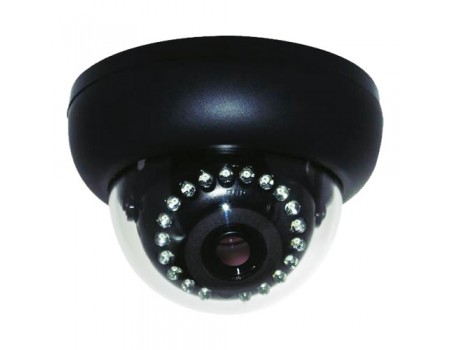

Galaxy 700TVL WDR IR Indoor Dome Camera
Galaxy 700TVL WDR IR Indoor Dome Camera
Data Sheet
Product Code:
Product Code:
SED-CAM-SVD672I
Summary:1/3 INCH SONY SUPER HAD CCD II, 700 TV Lines, Day & Night, WDR, 0 Lux at IR On, AWB, OSD, BLC, AGC, 3DDNR, Smart Motion Detectionn, Privacy, Smart IR, LSC, 20pcs IR LEDs, 3-Axis, 4.3mm Fixed Lens, DC12V
- Hero Chipset
- 1/3 INCH SONY SUPER HAD CCD II
- High Resolution
- High Sensitivity (Sense up x 1024)
- 0 Lux at IR On (IR LED 20pcs)
- OSD Controlled
- WDR (Wide Dynamic Range) Function
- Smart IR
- Day & Night / 3DDNR
- Motion / Privacy
- Easy Installation / 3 Axis
- Fixed Lens 4.3mm
Model | SED-CAM-SVD672I |
Sensor | 1/3 INCH SONY SUPER HAD CCD II |
Resolution | 700 TVL |
Total Pixels | 811(H) x 508(V) 410K pixels (NTSC) 795(H) x 595(V) 470K pixels (PAL) |
Effective Pixels | 768(H) x 494(V) 380K pixels (NTSC) 752(H) x 582(V) 440K pixels (PAL) |
Scanning System | 2:1 Interlace |
S/N (Y signal) | More than 52 dB (AGC off) |
Frequency | Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL) |
Video Output | CVBS : 1.0Vp-p / 75ohm |
Min. Illumination | 0 Lux at IR On |
White Balance | ATW / PUSH/ MANUAL Adjustable |
Electronic Shutter Speed | Auto / Manual (1/60 sec ~ 1/100,000 sec NTSC) (1/50 sec ~ 1/100,000 sec PAL) |
WDR (Wide Dynamic Range) | ON / OFF |
O.S.D | Built-in |
Backlight Compensation | BLC / HLC / HBLC / OFF |
AGC (Auto Gain Control) | LOW, MIDDLE, HIGH, OFF Selectable |
3DDNR (3D Digital Noise Reduction) | OFF, LOW, MIDDLE, HIGH, AUTO |
Day & Night | AUTO (DayNight time Change), EXT, COLOR, B/W |
Smart IR | ON / OFF |
Privacy | ON (8 Zone) / OFF |
Smart Motion Detection | ON (4 Zone) / OFF |
Image Conversion | ON / OFF |
LSC (Lens Shading Compensation) | ON / OFF |
Sharpness | ADJUSTABLE |
Language | ENGLISH, SPANISH, PORTUGUESE, RUSSIAN, GERMAN, ITALIAN, NEDERLANDS, KOREAN ,CHINESE |
LED | 20 pcs |
Lens | 4.3mm Fixed Lens |
Power | DC 12V |
Operating Temperature / Humidity | -10°C ~ +40°C / 30%~ 80% RH |
Storage Temperature / Humidity | -20°C ~ +60°C / 20% ~ 90% RH |
