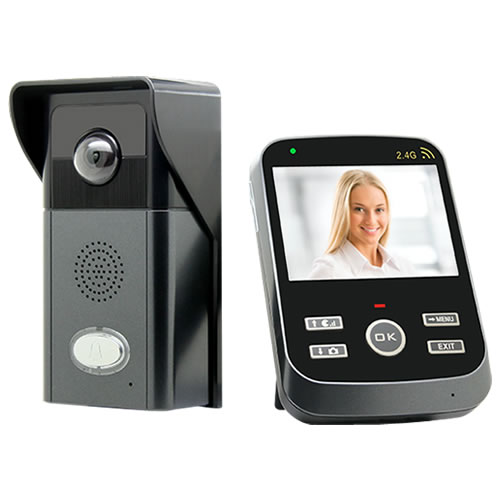

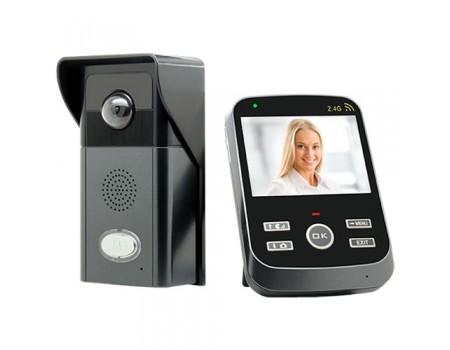

Wireless Day&Night Video Door Phone Intercom System
Data Sheet
Product Code:
Product Code:
VDP-KDB303
Summary:2.4G Digital Wireless, 3.5" TFT color screen, 300,000 pixels, Angle adjustable camera, Wide angle up to 115 degree, IP55, Picture Taking, Night Vision, Tamper Alarm
- 2.4G Digital Wireless, Built-in aerial
- 3.5" TFT color screen
- 300,000 pixels
- Angle adjustable camera
- Wide angle up to 115 degree
can be adjusted up and down 15 degree
left and right 15 degree. - Waterproof grade: IP55
- Picture Taking, Night Vision
- Tamper Alarm Function
- Up to 2 cameras to 3monitors
intercom between with monitors - Monitor & intercom changing over
- W/B or color night vision for selection
Outdoor | Power | 4x AA |
Consumption | 360mA | |
Dimension | 132 x 72 x 36 (mm) | |
Weight | 210g | |
Environmental | Temperature: -10°C ~ +50°C | |
Waterproof Grade | IP55 | |
Placement Mode | Exterior Wall Installation | |
Material | ABS | |
Lens | 300,000 pixels | |
Angle of view | 170deg. | |
Night Vision | Infrared Lamp | |
Working Time | 3 hours Continuously | |
Standby Time | One Year | |
Indoor Monitor | Power | Lithium Battery BP-6M (1100mAh) |
Consumption | 400mA | |
Dimension | 126 x 84 x 20 (mm) | |
Weight | 110g | |
Enviromental | Temperature: -0°C ~ +40°C | |
Placement Mode | Table (portable) | |
LCD Size | 3.5" TFT Color Screen | |
Communication Mode | 2.4GHz | |
Images Transmission | 25fps | |
Picture Format | JPEG | |
Working Time | Continuous owrk 4 hours | |
Standby Time | 120 hours | |
Charge Time | 3 Hours | |
Extra power | DC5V 1A | |
Working distance | 300m in open area |
