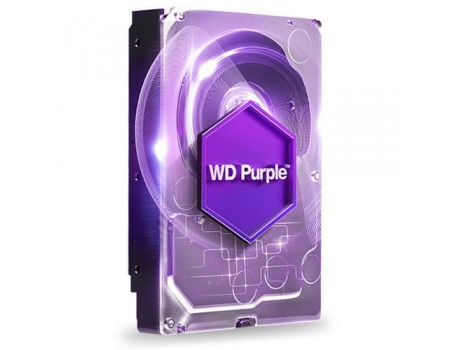

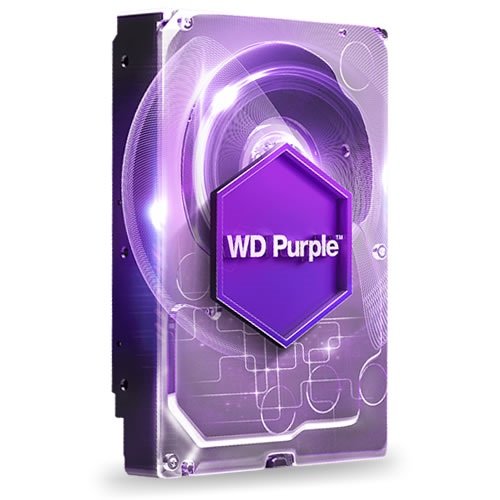

WD Purple 2TB Drive 64M Buffer
Sale
Data Sheet
Product Code:
Product Code:
HDD-SATA-2TBPUR
Summary:Write-intensive, low bit-rate, high stream-count applications, Prioritized write-operations, TLER & ATA
- Engineered specifically for surveillance security systems
- Reduced video frame loss
- Tuned for write-intensive, low bit-rate, high stream-count applications typical to most surveillance applications
- Prioritized write-operations for maximized surveillance performance
- TLER & ATA streaming support
| Formatted capacity | 2TB |
| Form factor | 3.5-inch |
| Advanced Format (AF) | Yes |
| RoHS compliant | Yes |
| Performance | |
| Data transfer rate (max) | Buffer to host:6 Gb/s, Host to/from drive (sustained):145 MB/s |
| Cache (MB) | 64 |
| Performance Class | 5400 RPM Class |
| Reliability/Data Integrity | |
| Load/unload cycles | 300,000 |
| Non-recoverable read errors per bit | |
| Power Management | |
| Average power requirements (W) | Read/Write: 4.4, Idle: 4.1, Standby and Sleep: 0.4 |
| Environmental Specifications | |
| Temperature (°C, on the base casting) | Operating:0~65, Non-operating: -40~70 |
| Shock (Gs) | Operating (2 ms, read/write):30, Operating (2 ms, read): 65, Non-operating (2 ms): 350 |
| Acoustics (dBA) | Idle: 23, Seek (average): 24 |
| Physical Dimensions | |
| Height (in./mm, max) | 1.028/26.1 |
| Length (in./mm, max) | 5.787/147 |
| Width (in./mm,.01 in.) | 4/101.6 |
| Weight (lb/kg, 10%) | 1.40/0.64 |
