Data Sheet

Product Code:

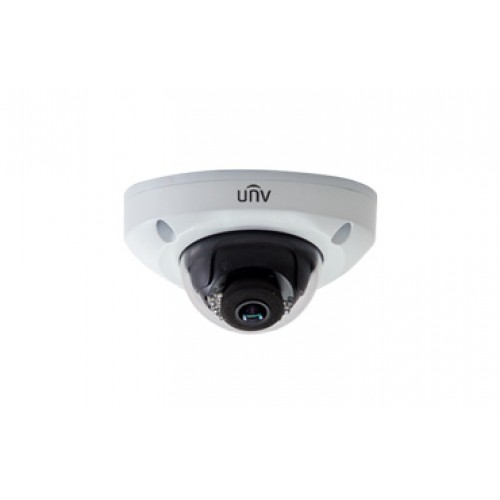

IPC314SR-DVPF28

Summary:

1/3'' CMOS, ICR, 2592*1520: 20fps; 2560*1440: 25fps, H.265/H.264/MJPEG, Triple streams, DC12V & PoE, Micro SD card slot, 120dB WDR, Audio, built in Mic, IP66 & IK10, Fixed lens(2.8mm, 3.6mm optional), IR range: up to 15m

  • Optics

    * Day/night functionality

    * Smart IR, up to 15m (49ft) IR distance

    * 2D/3D DNR (Digital Noise Reduction)

    * Up to 120dB Optical WDR (Wide Dynamic Range)

    Compression

    * Ultra 265, H.265, H.264, MJPEG

    * Triple streams

    * ROI (Region of Interest)

    Network

    * ONVIF Conformance

    Structure

    * Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)

    * Wide voltage range of ±25%

    * Built-in microphone

    * IK10 vandal resistant

    * IP67

    * 3-Axis
