Data Sheet

Product Code:

NC714-VBA32-LPR

Summary:

4MP, 2688x1520@30fps, 140dB WDR, 0.0001Lux@F1.2, Day&Night (ICR), CVBS output, IR up to 100m (328ft), MicroSD Slot, Audio, Alarm, RS-485, Motion Detection, Intrusion, Line Crossing, IP67, IK10, 8~32mm Motorized VF Lens, PoE/DC12V

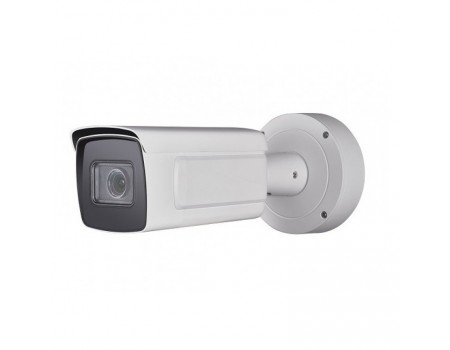

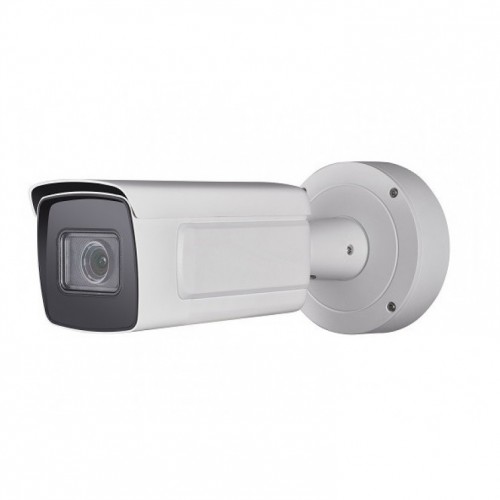

This IP License Plate Recognition Camera is designed to capture usable License Plate Images in a variety of conditions. The IP Network Bullet Style Camera is IP67 Weatherproof and has a durable construction so it can stand up to the most difficult environments. We love the Motorized Zoom, 8-32mm Lens, and Smart Focus which make the NC714-VBA12-LPR Security Camera flexible in a multitude of applications. This IP LPR Bullet Security Camera is used at Entry and Exit Gates, Parking Lots, Parking Garages or any location that license plate tracking and capture are intended. The NC714 also features up to 300 Foot Night Vision Range, True WDR (Wide Dynamic Range), and an Ultra Low Light Sensor.

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to 140 dB WDR technology
  • License Plate Recognition
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP67) and vandal proof (IK10)


Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 x 1520
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Blue glass module to reduce ghost phenomenon
Lens
Focal Length & FOV 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
Focus Auto, semi-auto, manual
Iris Type P-iris
Aperture 8 to 32 mm: F1.7 to F1.73
DORI
DORI Wide: 8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele: 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Illuminator
Supplement Light Type IR
Supplement Light Range 8 to 32 mm: 100 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)
60 Hz: 30 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream 50 Hz: 25 fps (704 x 576, 640 x 480)
60 Hz: 30 fps (704 x 480, 640 x 480)
Third Stream 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)
60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
Fourth Stream 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)
60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
Fifth Stream 50 Hz: 25 fps (704 x 576, 640 x 480)
60 Hz: 30 fps (704 x 480, 640 x 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream/Third stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 and H.264 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64
Kbps (AAC)/8 to 320 Kbps (MP3)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log,
TLS 1.2
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hik memory card, memory card encryption and health detection are supported
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client
software or web browser
Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
Wide Dynamic Range (WDR) 140 dB
SNR >/= 52 dB
Image Enhancement BLC, HLC, Defog, 3D DNR
Picture Overlay LOGO picture can be overlaid on video with 128 x 128 24bit bmp format
Image Stabilization EIS
Interface
Video Output 1 Vp-p Composite Output (75 Ohm/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm 2 input, 2 outputs (max. 24 VDC, 1 A)
RS-485 With -Y: 1 RS-485 (half duplex, HIK, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output With -Y: 12 VDC, max. 100 mA
Wiegand /P-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality
diagnosis, vibration detection
Smart Event Intrusion detection, scene change detection, audio exception detection, defocus detection
Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable  Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture
Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types
Road Traffic and Vehicle Detection Blocklist and allowlist: up to 10,000 records Captures vehicle that has no license plate
Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City
Street mode is recommended.)
Metadata Metadata of road traffic is supported.
General
Power 12 VDC +/- 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W
Material Aluminum alloy body
Dimension Without -Y: Dia.144 x 347 mm (Dia.5.7" x 13.7")
With -Y: Dia.140 x 351 mm (Dia.5.5" x 13.8")
Package Dimension 405 x 190 x 180 mm (15.9" x 7.5" x 7.1")
Weight Approx. 1950 g (4.2 lb.)
With Package Weight Approx. 3070 g (6.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
General Function Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset
via email, pixel counter
Approval
EMC FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN
50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
Anti-Corrosion Protection With -Y: NEMA 4X(NEMA 250-2018)
Automotive and Railway EN50121-4
Other PVC FREE
