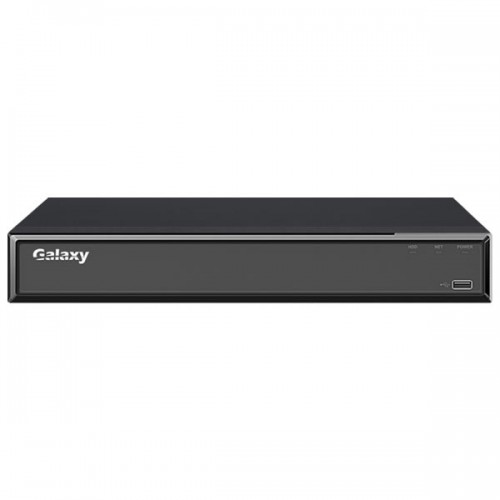

Galaxy Hunter Series 4CH 4K AI Pentabrid DVR
Galaxy Hunter Series 4CH 4K AI Pentabrid DVR
   0 reviews  |  Write a review
Data Sheet

Product Code:

GX-HT-XVR8504K-ST-AI+1TB

Summary:

4CH HDCVI/AHD/TVI/CVBS, 8CH IP, H.265+, Perimeter, Face Detection, SMD+, 1x HDMI, 1x VGA, Audio, 1x SATA up to 10TB, 2xUSB2.0, 1xRJ45, RS485, Onvif, Mini 1U

Login for price
  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Supports 8 channels of IPC access, each channel up to 8MP input; Max 32Mbps Incoming Bandwidth
  • IoT & POS functionalities
  • Perimeter Protection and SMD Plus
  • Up to 2 channels video stream(analog channel )human face recognition


System
Main Processor Embedded Processor
Operating System Embedded LINUX
Perimeter Protection
Perimeter protection 1.AI by DVR: Detection alarm for human and vehicle. Filter misinformation such as leaves and light.
2.Function configuration: Set at most 10 rules such as area intrusion and tripwire intrusion.
3.Performance: 2 channels
Live View 1. Rule box inspection: Configure the rule box and object inspection box. 2.Smart panel: Display object classification (human, vehicle), event types, triggering time, image matting and object types. Attribute is not supported. 3. Counting: Count people in Peopletotal. Count motor vehicles in Vehicle. Support exporting of associated event playback before and after 10 seconds.
Playback 1. Search conditions: According to channels, time, event types and target types. 2.Functions: Support search of associated event playback or snapshot before and after 10 seconds. 3. Snapshot capacity: 500,000
Face Recognition
Performance 1. UP to 12 face pictures/sec processing (modeling and comparing). 2. Up to 2 channels video stream (analog channel ) human face recognition. 3. Up to 10 face databases with 10,000 face images in total. 4. Up to 300,000 face detection events in total. 5. Up to 300,000 face Recognition events in total.
Stranger Mode Detect strangers' faces (not in device's face database).Similarity threshold can be set manually.
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application Each database can be applied to video channels independently.
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, PTZ Activation, etc.
SMD Plus
SMD Plus 1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light. 2. Performance: 4 channels , AI by DVR
Preview Preview: Configure and inspect detection box
Playback 1.Playback: Search videos through channels, time and target types.
2.Functions: Support search of associated event playback before and after 10 seconds.
Video and Audio
Analog Camera Input 4 Channel, BNC
HDCVI Camera 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 4+4 Channel, each channel up to 8MP
Audio In/Out 4 Channel Input, 1 Channel Output, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.265+/H.265/H.264+/H.264
Resolution 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate Main stream: All channel: 4K(1fps–7fps); 6MP(1fps–10fps); 5MP(1fps–12fps); 4K-N/4MP/3MP(1fps–15fps); 4M-N/1080P/720P/960H/D1/CIF/QCIF (1fps–25/30fps); Sub steram:960H(1fps–15fps); D1/CIF/QCIF(1fps–25/30fps)
Bit Rate 32Kbps–6144Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Stop
Record Interval 1–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Display
Interface 1 HDMI, 1 VGA
Resolution HDMI:2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (100M)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Alarm input -
Relay Output -
Playback and Backup
Playback 1/4
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA Port, up to 10TB capacity for each disk
eSATA N/A
Auxiliary Interface
USB 2 USB Ports (2 USB 2.0 )
RS232 N/A
RS485 1 Port, for PTZ Control
Electrical
Power Supply DC 12V/2A
Power Consumption <10W (Without HDD)
Construction
Dimensions Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
Net Weight 1.45kg (3.2lb) (without HDD)
Gross Weight 2kg (4.4lb)
Installation Desktop installation
Environmental
Operating Conditions -10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH
Third-party Support
Third-party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
