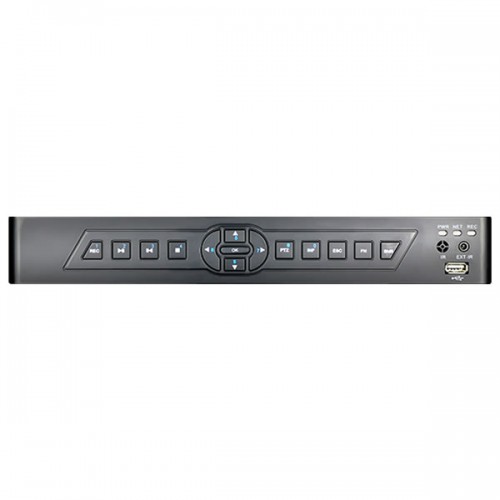

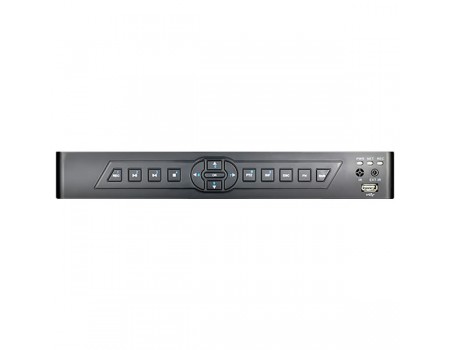

Platinum X Professional 8 Channel HD-TVI DVR
Data Sheet
Product Code:
Product Code:
LTD4108T-FA
Summary:8CH HD-TVI, 2CH IP, 8CH 1920x1080@15fps, H.264, 1xHDMI, 1x VGA, 1x CVBS, Audio 1i/1o, Alarm 8i/4o, 1x RJ45, 1x RS485, 1x SATA up to 4TB, 2x USB2.0
- HD-TVI H.264 DVR, Dual-Stream Video Compression
- Support HD-TVI, IP, Analog Cameras
- Full Channel 1080P@15fps, 720P@30fps Recording
- HDMI and VGA Output up to 1920x1080P Resolution
- Long Transmission Distance Over Coax Cable
| Video / Audio input | |
| Video compression | H.264 |
| HD-TVI video input | 8ch |
| Video input interface | BNC (1.0 Vp-p, 75 ohm), PAL / NTSC self-adapive |
| IP input | 2ch(1080p@30fps) |
| Audio compression | G.711A |
| Audio input | 1-ch, RCA(2.0 Vp-p, 1 kohm) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kohm) |
| Video / Audio output | |
| HDMI / VGA output | 1920 x 1080,1280 x 1024, 1280 x 720, 1024 x 768/60 Hz |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Encoding resolution | Main stream: 1080P(non-real-time) / 720P / WD1 / 4CIF Sub-stream: CIF / QCIF |
| Frame rate | Main stream: 1fps ~ Real time frame rate Sub-stream: 1fps ~ Real time frame rate |
| Video bit rate | 1280 Kbps-7168 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 kohm) |
| Audio bit rate | 64 Kbp |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8-ch |
| Playback resolution | 1080P / 720P / WD1 / 4CIF / CIF / QCIF |
| Network | |
| Remote connections | 10 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA | 1 SATA interfaces |
| Capacity | Up to 4TB capacity for each disk |
| External interface | |
| Network interface | 10M / 100M /1000M |
| Serial interface | 1; standard RS-485 serial interface, half-duplex |
| USB port | 2 x USB2.0 |
| Alarm in/out | 8/4 |
| General | |
| Power supply | DC 12V |
| Consumption | <= 10 W |
| Working temperature | -0 °C ~ +55 °C(32°F - 131°F) |
| Working humidity | 10% ~ 90% |
| Dimension | 12.6 x 9.6 x 2.0" |
| Weight (without hard disk) | <= 3.3 lb (1.5Kg) |
