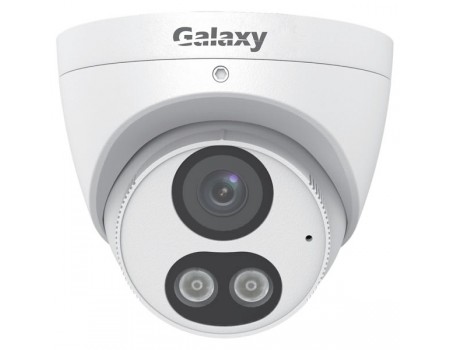

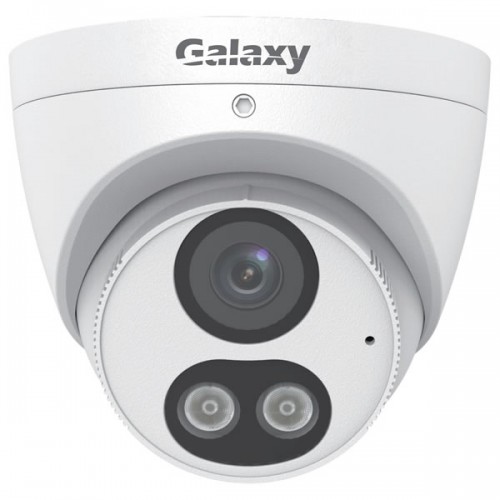

GX725A-AI-LED-28AD Galaxy Pro AI Active Deterrence 5MP Color247 Fixed IP Turret Camera
GX725A-AI-LED-28AD Galaxy Pro AI Active Deterrence 5MP Color247 Fixed IP Turret Camera
   0 reviews  |  Write a review
Data Sheet

Product Code:

GX725A-AI-LED-28AD

Summary:

5MP, 2688x1620@30fps, Ultra265, 120dB WDR, IR up to 30m (98ft), Built-in Mic/Speaker, Siren and Strobe Light, MicroSD slot, Human & Vehicle, 2.8mm Fixed Lens, PoE, IP67, Optional: TR-JB03-G-IN, GX-BK-WME03

Login for price
  • High quality image with 5MP, 1/2.7"CMOS sensor
  • 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic and Speaker
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
  • Support PoE power supply
Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
WDR 120dB
S/N >56dB
Lens
Lens type 2.8mm@F1.6
Angle of view(H) 101.1°
Angle of View (V) 55.3°
Angle of View (O) 111.1°
DORI
DORI Distance Lens (2.8mm), Detect (63.0m), Observe (25.2m), Recognize (12.6m), Identify (6.3m)
Illuminator
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T) , API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client Galaxy8000
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Support
Built-in Speaker Support
WIFI N/A
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
Certifications CE, FCC
General
Power DC 12V+/-25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W
Power Interface Dia. 5.5mm coaxial power plug
Dimensions (Dia. x H) Dia.111 x 95mm (Dia.4.4" x 3.7")
Weight 0.43kg (0.948lb)
Material Metal + Plastic
Working Environment -30°C ~ 55°C (-22°F ~ 131°F), Humidity: </=95% RH (non-condensing)
Storage Environment -30°C ~ 55°C (-22°F ~ 131°F), Humidity: </=95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
Protection Ingression protection: IP67
