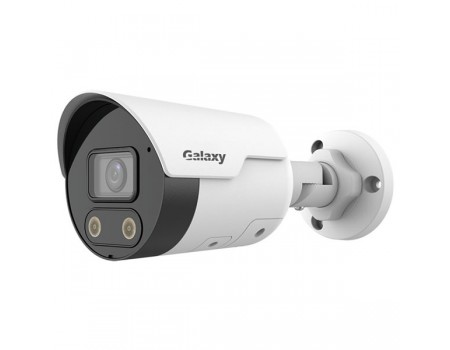

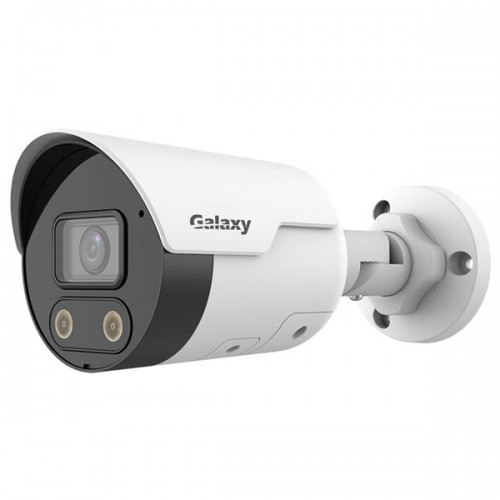

GX845A-AI-LED-28AD Galaxy Pro AI Active Deterrence 5MP Color247 Fixed IP Bullet Camera
GX845A-AI-LED-28AD Galaxy Pro AI Active Deterrence 5MP Color247 Fixed IP Bullet Camera
Data Sheet
Product Code:
Product Code:
GX845A-AI-LED-28AD
Summary:5MP, 2688x1620@30fps, Ultra265, 120dB WDR, IR up to 30m (98ft), Built-in Mic/Speaker, Siren and Strobe Light, MicroSD slot, Human & Vehicle, 2.8mm Fixed Lens, PoE, IP67, Optional: GX-BK-JBE05
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic and Speaker
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
Camera | |||||||||
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||||||
Minimum Illumination | Colour: 0.001Lux (F1.6, AGC ON) 0Lux with IR on |
||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° | ||||||||
WDR | 120dB | ||||||||
S/N | >56dB | ||||||||
Lens | |||||||||
Lens type | 2.8mm@F1.6 | ||||||||
Angle of view(H) | 96.1° | ||||||||
Angle of View (V) | 55.3° | ||||||||
Angle of View (O) | 111.1° | ||||||||
DORI | |||||||||
DORI Distance | Lens (2.8mm), Detect (63.0m), Observe (25.2m), Recognize (12.6m), Identify (6.3m) | ||||||||
Illuminator | |||||||||
IR Range | Up to 30m (98ft) IR range | ||||||||
Wavelength | 850nm | ||||||||
IR On/Off Control | Auto/Manual | ||||||||
Video | |||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
Frame Rate | Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||
9:16 Corridor Mode | Supported | ||||||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
U-code | Support | ||||||||
ROI | Up to 8 areas | ||||||||
Video Stream | Triple streams | ||||||||
OSD | Up to 8 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
Image | |||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||||||
Digital Noise Reduction | 2D/3D DNR | ||||||||
Smart IR | Support | ||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
Dewarping | N/A | ||||||||
HLC | Supported | ||||||||
BLC | Supported | ||||||||
Defog | Digital Defog | ||||||||
Audio | |||||||||
Audio Compression | G.711 | ||||||||
Audio Bitrate | 64 Kbps | ||||||||
Two-way audio | Supported | ||||||||
Suppression | Supported | ||||||||
Sampling Rate | 8KHZ | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 256 GB | ||||||||
Network Storage | ANR, NAS(NFS) | ||||||||
Network | |||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T) , API,SDK | ||||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
Client | Galaxy8000 | ||||||||
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||||||
Interface | |||||||||
Audio I/O | N/A | ||||||||
Alarm I/O | N/A | ||||||||
RS485 | N/A | ||||||||
Built-in Mic | Support | ||||||||
Built-in Speaker | Support | ||||||||
WIFI | N/A | ||||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
Video Output | N/A | ||||||||
Certifications | |||||||||
Certifications | CE, FCC | ||||||||
General | |||||||||
Power | DC 12V+/-25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 5.0W | |||||||||
Dimensions (Dia. x H) | 155.9 x 63.1 x 62.7mm (6.1" x 2.5" x 2.5") | ||||||||
Weight | 0.425kg (0.93lb) | ||||||||
Material | Metal | ||||||||
Working Environment | -30°C ~ 55°C (-22°F ~ 131°F), Humidity: </=95% RH (non-condensing) | ||||||||
Storage Environment | -30°C ~ 55°C (-22°F ~ 131°F), Humidity: </=95% RH (non-condensing) | ||||||||
Surge Protection | 2KV | ||||||||
Reset Button | Supported | ||||||||
Protection | Ingression protection: IP67 |
