HiLook 8CH 4K IP kit
Data Sheet
Product Code:
Product Code:
IK-6288TH-MH/P

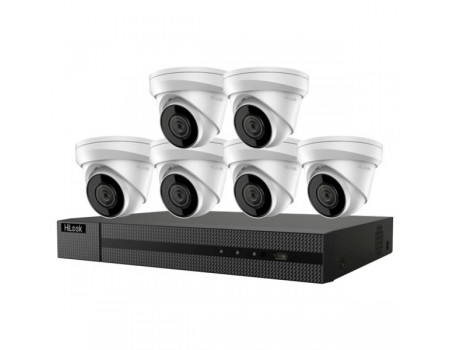

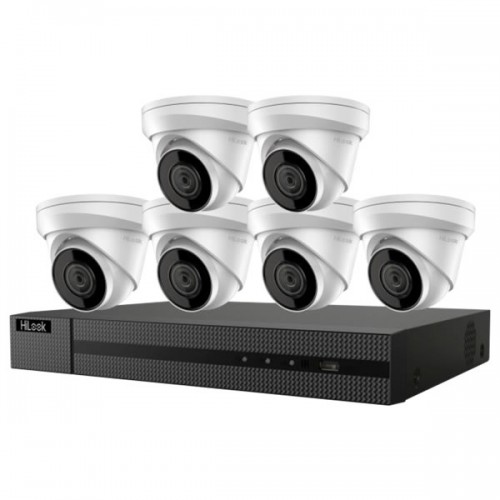

Summary:HiLook 8CH 4K IP kit, 1 x 8CH 4K NVR with PoE, 1 x 2TB surveillance HDD, 6 x 4K 2.8mm turret IPC, 6 x 60ft pre-made CAT5e cable / Optional: Junction Box: DS-1230ZJ / Wall Mount: DS-1273ZJ-130TR
- One pack contains everything required for small monitoring scenarios
- One 8-channel PoE NVR (Capability 2CH 8MP@15fps, 5CH 1080p@30fps)
- Six 4K 2.8mm fixed turret network cameras with efficient H.265 compression technology
- 7 network cables
- 2 TB pre-installed HDD
NVR SPEC | |
Video and Audio | |
IP video input | 8-ch |
Up to 8 MP resolution | |
Incoming bandwidth | 80 Mbps |
Outgoing bandwidth | 80 Mbps |
HDMI output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
VGA output | 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
Video output mode | HDMI/VGA simultaneous output |
CVBS output | N/A |
Audio output | 1-ch, RCA (Linear, 1 KOhm) |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KOhm, using the audio input) |
Decoding | |
Decoding format | H.265+/H.265/H.264+/H.264 |
Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous playback | 8-ch |
Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream type | Video, Video & Audio |
Audio compression | G.711ulaw/G.711alaw/G.722/G.726 |
Network | |
Remote connection | 64 |
Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
PoE | |
Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | </= 80W |
Supported standard | IEEE 802.3 af/at |
Auxiliary Interface | |
SATA | 2 SATA interfaces |
Capacity | Up to 8 TB capacity for each disk |
USB interface | Front panel: 1 x USB 2.0 ; Rear panel: 1 x USB 2.0 |
General | |
Power supply | 48 VDC, 2.5 A |
Consumption (without HDD and PoE off) |
</= 15 W |
Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working humidity | 10% to 90% |
Dimension (W x D x H) | 385 x 315 x 52 mm (15.2" x 12.4" x 2.0") |
Weight (without HDD) | </= 2.6 kg (5.7 lb) |
Certification | |
FCC | Part 15 Subpart B, ANSI C63.4-2014 |
CE | EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
CAMERA SPEC | |
Image Sensor | 1/2.8" Progressive Scan CMOS |
Max. Resolution | 3840 x 2160 |
Shutter Time | 1/3 s to 1/100,000 s |
Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Lens | |
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Focal Length ? FOV | 2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127° |
Lens Mount | M12 |
Iris Type | Fixed |
Aperture | F2.0 |
DORI | |
DORI | 2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m |
Illuminator | |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
Smart Supplement Light | Yes |
IR Wavelength | 850 nm |
Video | |
Main Stream | 50 Hz: 12.5 fps (3840 x 2160), 20 fps (2592 x 1944), 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720) 60 Hz: 15 fps (3840 x 2160), 20 fps (2592 x 1944), 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720) |
Sub-Stream | 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360) 60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360) |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR/VBR |
Region of Interest (ROI) | 1 fixed region for main stream |
Network | |
Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address) |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface (Profile S), ISAPI, SDK |
Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP |
User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
Client | iVMS-4200, HiLookVision |
Web Browser | Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
Image | |
Wide Dynamic Range (WDR) | 120 dB |
SNR | >/= 52 dB |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
Image Settings | Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Privacy Mask | 4 regions of privacy mask |
Interface | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection, video tampering alarm, exception |
Linkage | Notify surveillance center, trigger capture |
General | |
Power | 12 VDC +/- 25%, 0.4 A, max. 5 W, Dia.5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W |
Material | Metal & Plastic |
Dimension | Dia.110 mm x 95.2 mm (Dia.4.3" x 3.8") |
Package Dimension | 150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6") |
Weight | Approx. 320 g (0.7 lb.) |
With Package Weight | Approx. 530 g (1.2 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | English, Ukrainian |
General Function | Anti-flicker, heartbeat, password protection, password reset via email |
Approval | |
EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015) |
Safety | CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017) |
Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529-2013) |
