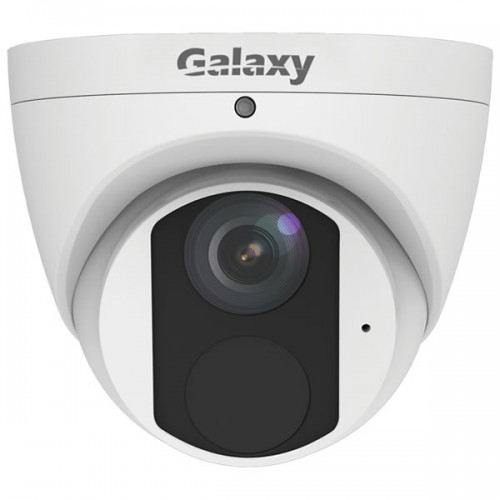

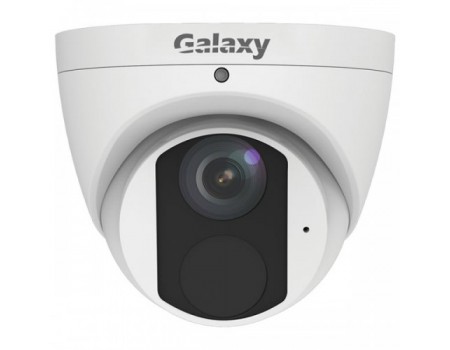

Galaxy Pro 4MP Starlight LightHunter IR Turret Camera with AI Human Detection with Mic Build In
Galaxy Pro 4MP Starlight LightHunter IR Turret Camera with AI Human Detection with Mic Build In
   0 reviews  |  Write a review
Data Sheet

Product Code:

SC-3245WD-I0-F28M

Summary:

Galaxy Elite 4MP 2560×1440@25FPS / Ultra265, H.265, H.264, MJPEG / Digital WDR / Smart IR. Up to 30M (100 feet) IR Distance / Supports 256GB / MicroSD Card / IP67 Protection / Supports POE Power /3 Axis Bracket /ONVIF Support /Region of Interest (ROI) Wide Temperature Range: -30°C to 60°C (-22°F to 140°F) / IP67 Junction Box: TR-JB03-G-IN, Wall Mount: GX-BK-WME03

Login for price

• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply

Camera
Sensor1/3", 4.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.6
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.863.025.212.66.3


Angle of view(H)101.1°
Angle of View (V)55.3°
Angle of View (O)111.1°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
S/N>56dB
IR RangeUp to 30m (98ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN/A
HLCSupported
BLCSupported
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile T), API
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
Built-in MicSupported
Certifications
CertificationsCE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Dimensions (Ø x H)?110.5 x 94.1mm (?4.4” x 3.7”)
Net Weight0.42kg (0.93lb)
MaterialMetal
Operating Conditions-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing)
Surge Protection2KV
Ingress ProtectionIP67
Reset ButtonN/A
