Data Sheet

Product Code:

SVA-SLB30

Summary:

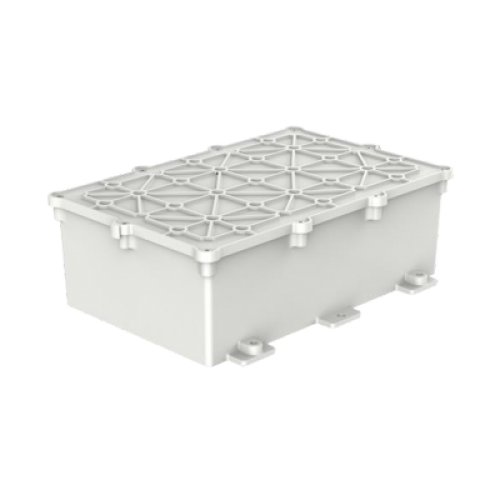

30 Ah chargeable lithium battery for Solar Panels compatible with SVDIP9C82W-28SD-4G

Parameters

Dimension

Battery Dimension: 236 × 154 × 80 mm (9.29" × 6.06" × 3.15")

Package Dimension: 280 × 170 × 218 mm (11.02" × 6.69" × 8.58")

Operating Conditions

Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F)

Discharging Condition: -20 °C to 60 °C (-4 °F to 140 °F)

Storage Conditions

-20 °C to 60 °C (-4 °F to 140 °F)

Battery Type

Lithium

Battery Voltage

10.8 V

Capacity

30 Ah

Max. Charging Voltage

12.6 V

Battery Life

More than 500 cycles

Weight

Approx. 3.3 kg (7.3 lb.)

Material

Housing: Aluminum Alloy

Protection

IP68 (1.5 m, 72 h)

Heater

Yes

Interface

1 RS-485 (half duplex), Ø5.5 mm coaxial power plug, M8 aviation plug



Solar Power Controller

MPPT solar power controller

Fully charged voltage: 12.6 VDC Max. output current: 8 A
