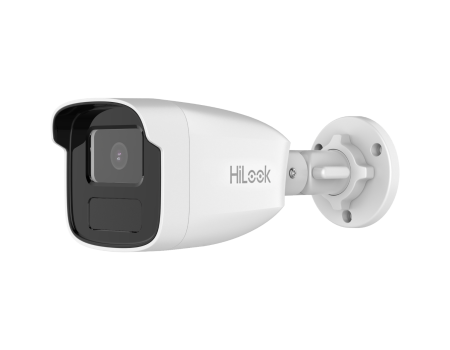

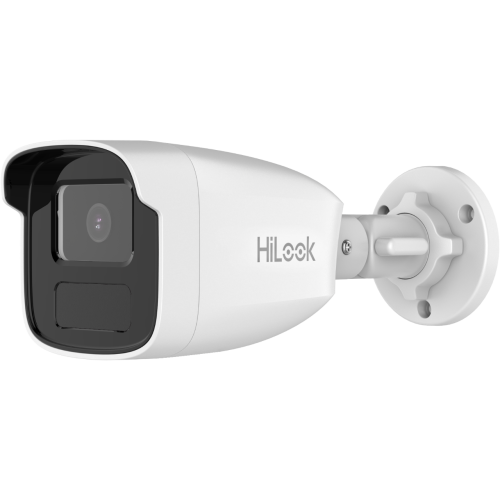

HiLook 4K Fixed Bullet Network Camera
Product Code:
IPC-B480H(4mm)
Summary:4K/8MP, 3840x2160, @12.5fps, H.265, 120dB WDR, Motion Detection, IR, up to 50m (164ft), IP67, 4mm Lens, Fixed, DC12V
- High quality imaging with 8 MP resolution
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Water and dustresistant (IP67)
- Easy installation with Power over Ethernet (PoE) technology
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. Illumination
4 mm: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
6 mm: Color: 0.01 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 4 and 6 mm optional
- Focal Length & FOV
4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62°
- Lens MountM12
- Iris TypeFixed
- Aperture
4 mm, F2.0
6 mm, F1.6
- DORI
- DORI
4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m
6 mm, D: 169 m, O: 67 m, R: 34 m, I: 17 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 50 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Region Of Interest (ROI)1 fixed region for main stream
- Network
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
- User/Host
Up to 32 users
3 levels: Administrator, Operator and User
- ClientiVMS-4200, HiLookVision
- Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR)120 dB
- SNR? 52 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image SettingsMirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Privacy Mask4 regions of privacy mask
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic EventMotion detection, video tampering alarm, exception
- LinkageNotify surveillance center, trigger capture
- General
- Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5 W
- MaterialFront cover: metal, body: plastic, bracket: metal
- Dimension83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
- Package Dimension260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
- Approx. 375 g (0.87 lb.)
- With Package WeightApprox. 599 g (1.29 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, password protection, password reset via email
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
- Safety
CB (IEC 62368-1: 2014+A11);
CE-LVD (EN 62368-1: 2014/A11: 2017)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
