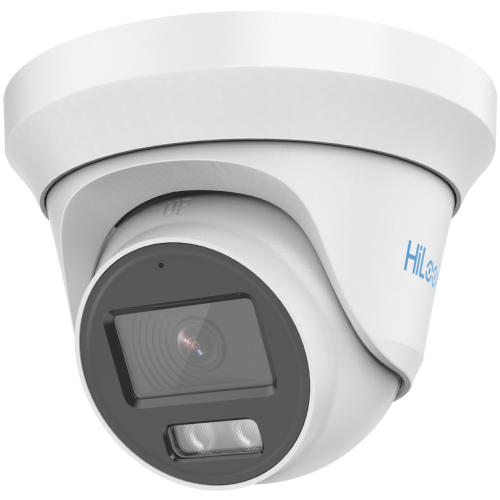

HiLook 3K ColorVu Audio Fixed Turret Camera
HiLook 3K ColorVu Audio Fixed Turret Camera
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP66)
- Camera
- Image Sensor3K CMOS
- Signal SystemPAL/NTSC
- Resolution2960 (H) × 1665 (V)
- Frame Rate
TVI: 3K @ 20 fps, 4 MP @ 25 fps/30 fps, 1080p @ 25 fps/30 fps
AHD: 4 MP @ 25 fps/30 fps
CVI: 4 MP @ 25 fps/30 fps
CVBS: PAL/NTSC
- Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens2.8 mm/3.6 mm fixed focal lens
- Field Of View
2.8 mm, horizontal FOV: 113°, vertical FOV: 62°, diagonal FOV: 137°
3.6 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 108°
- Lens MountM12
- Light AlarmSolid Light Alarm (White Light)
- Day & Night24/7 Color Imaging
- WDR (Wide Dynamic Range)Digital WDR
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Image
- White LightAuto/Off
- Image ModeSTD/HIGH-SAT/HIGHLIGHT
- AGCYes
- Day/Night ModeColor
- White BalanceAuto/Manual
- AE (Auto Exposure) ModeDWDR;BLC;HLC;Global
- Noise Reduction2D DNR
- LanguageEnglish
- FunctionBrightness;Sharpness;Anti-Banding
- Lighting ModeWhite Light
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Operating Conditions-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- Power Supply
12 VDC±25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 4.2 W
- Protection LevelIP66
- MaterialMetal
- White Light RangeUp to 40 m
- Dimension? 127.92 mm × 97.8 mm (? 5.04" × 3.86")
- Approx. 480 g (1.06 lb.)
