Data Sheet

Product Code:

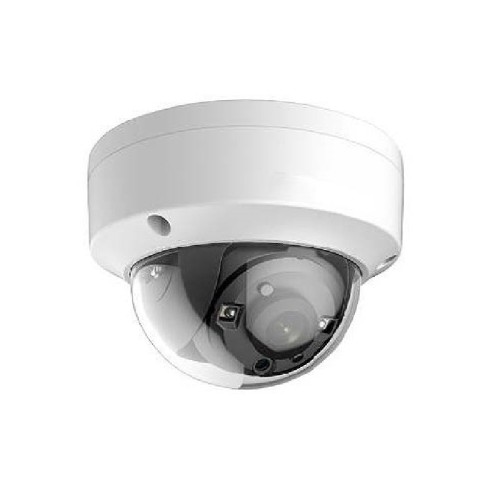

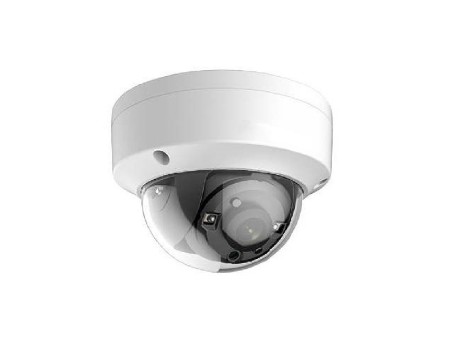

AC344-OD/C-2.8

Summary:

HD 1080P, Adopt HDTVI technology, 1/3" Sensor, DWDR, Up to 65ft (20m) IR distance, OSD Menu, Day & Night(ICR), Up the coax (need UTC controller), IP66, 2.8mm Lens, DC12V

  • HD 1080P, Adopt HDTVI technology, 1/3" Sensor
  • DWDR, Up to 65ft (20m) IR distance
  • OSD Menu, Day & Night(ICR)
  • Up the coax (need UTC controller), IP66
  • 2.8mm Lens, DC12V
Camera
ImageSensor1/2.7"ProgressiveScanCMOS
SignalSystemPAL/NTSC
EffectivePixels1930(H) x 1088(V)
Min.Illumination0.1Lux@(F1.2,AGCON),0LuxwithIR
ShutterTime1/25(1/30)sto1/50,000s
Lens2.8mm (115.6deg.)
LensMountM12
AngleAdjustmentPan:0-360deg.,Tilt:0-90deg.,Rotation:0-360deg.
Day&NightICR
SynchronizationInternalsynchronization
VideoFrameRate1080p@25fps/1080p@30fps
HDVideoOutput1turboHDoutput
CVBSOutput1Vp-pCompositeOutput(75ohm/BNC)
S/NRatioMorethan52dB
Menu
CameraIDOn/off(0-255)
AGCSupport
D/NModeColor/BW/Auto/EXT
WhiteBalanceAuto/User/Push/8000K/6000K/4200K/3000K
PrivacyMaskOn/Off,maximum2zones
MotionDetectionOn/Off,maximum4zones
BLCSupport
Anti-flickerOn/Off
LanguageEnglish/Chinese
FunctionsDigitalnoisereduction,Mirror
General
WorkingTemperature/Humidity-40°C-60°C(-40°F-140°F) Humidity90%orless(non-condensing)
PowerSupply12VDC
PowerConsumptionMax.3W
IR RangeUpto20m
ImpactProtectionIEC60068-2-75test,Eh,20J;EN50102,uptoIK10.
CommunicationUpthecoax Protocol:HIKVISION-C(Coaxitron)
DimensionDia.111x82.4(Dia.4.37"x3.24")
Weight550g(1.21lb)
