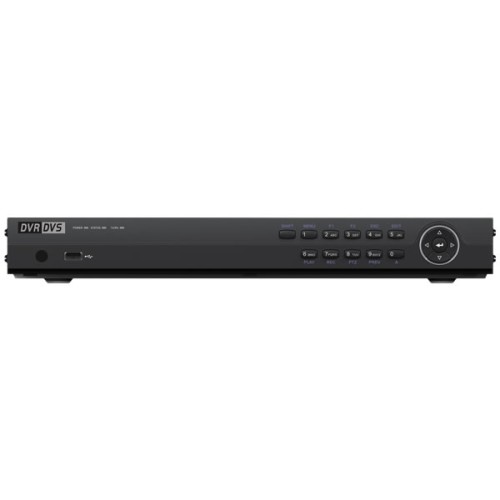

Galaxy Platinum 8ch 5mp/8mp Tvi Dvr With Acusense, 1-sata

Motion Detection 2.0¹

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection¹

Human/Vehicle Analysis

Up to 4-ch

Recording

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

Main stream:

8 MP@8 fps/5 MP@12 fps/3K@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video bit rate

32 Kbps to 10 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input2

4-ch (up to 12-ch)

Enhanced IP mode on:

8-ch (up to 16-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog video input

8-ch

BNC interface (1.0 Vp-p, 75 Ohm), supporting coaxitron connection

HDTVI input

8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,

1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

AHD input

5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25

fps, 720p@30 fps

HDCVI input

5 MP@20 fps, 4 MP@25 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25

fps, 720p@30 fps

CVBS input

PAL/NTSC

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ohm),

resolution: PAL: 704 × 576, NTSC: 704 × 480

VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI output

1-ch, 4K (3840 × 2160)/30Hz,

2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz,

1024 × 768/60Hz

Video output mode

HDMI/VGA simultaneous output

Audio input3

1-ch (up to 8-ch is optional), RCA (2.0

Vp-p, 1 K Ohm)

8-ch via coaxial cable

Audio output

1-ch, RCA (Linear, 1 K Ohm)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 K Ohm) (using the audio input)

Synchronous playback

8-ch

Network

Remote connection

64

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,

ONVIF

Network interface

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary interface

SATA

1 SATA interfaces

Capacity

Up to 10 TB capacity for each disk

Serial interface

RS-485 (half-duplex)

USB interface

Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0

Alarm in/out3

N/A (optional to support)

General

Power supply

12 VDC, 2.8 A

Consumption (without

HDD)

</= 15 W

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)

Weight (without HDD)

</= 1.78 kg (3.9 lb)
