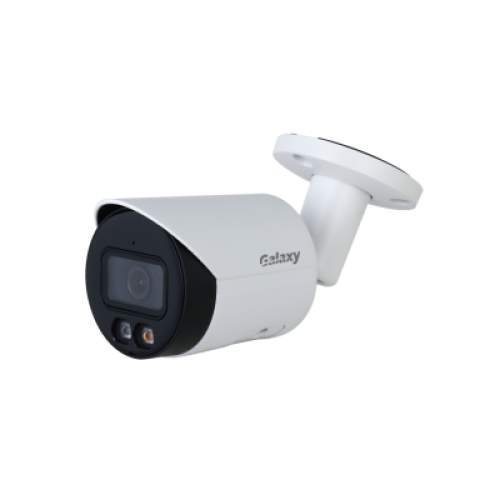

Galaxy Hunter Series 4MP AI Full Color Smart Dual Illumination Bullet Network Camera
Product Code:
GX-HT844A-AI-SDI-FC36
Summary:4MP, 2688 × 1520@20 fps, H.265, SMD+, 120dB WDR, 0.008 lux@F1.6, Day/Night, IR up to 30m (98ft), Built-in Mic, 3.6mm Fixed Lens, DC12V, IP67, Optional Junction Box: GX-HT-BK-JB85X, GX-HT-BK-JB80X, Pole Mount: GX-HT-BK-UP06
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Supports max. 256 G Micro SD card; built in MIC.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- SMD Plus.
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.9" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2688 (H) × 1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.008 lux@F1.6 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
>56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto;Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
1 (IR LED); 1 (Warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm; 3.6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
2.8 mm: H: 95°; V: 52°; D: 114°; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft); 3.6 mm: 1.6 m (5.25 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm |
63.6 m (208.66 ft) |
25.4 m (83.33 ft) |
12.7 m (41.67 ft) |
6.4 m (20.99 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm |
85.4 m (280.18 ft) |
34.2 m (112.20 ft) |
17.1 m (56.10 ft) |
8.5 m (27.89 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream: 2688 × 1520@(1–20 fps)/2566 × 1440@(1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability |
2 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 32 kbps–6144 kbps; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto (ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto;Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 ×1560 resolution and lower) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; SMD; voltage detection; security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (Profile S/Profile T); CGI; P2P; Milestone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
6 (Total bandwidth: 36 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE; Chrome; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security |
Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 2.1 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence + WDR + warm light): 4.4 W (12 VDC); 5.2 W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
</=95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.48 kg (1.06 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.59 kg (1.30 lb) |
