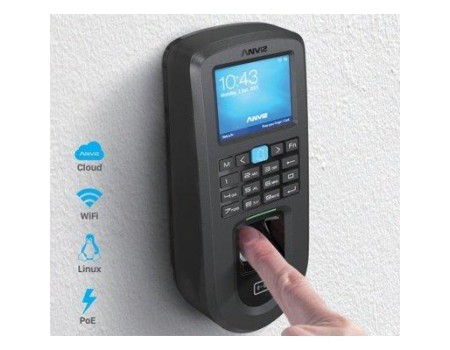

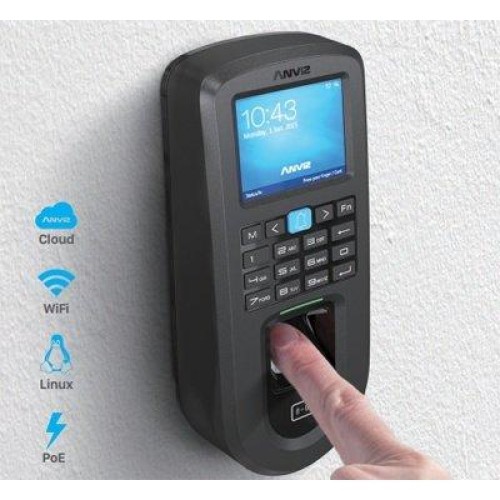

Anviz VF30 Pro Fingerprint and RFID Access Control
Data Sheet
Product Code:
Product Code:
VF30-PRO
Summary:Finger, Password, Card Support, Matching speed of up to 3,000 match/sec, 3000 Users, 3000 Cards, 100,000 logs, Power over Ethernet CAT5/6, TCP/IP interface, RS-485, Identification Speed
- High Speed Fingerprint Matching
- Powered by Anviz’s latest fingerprint recognition algorithm and range-leading 1GHz quick CPU, VF30 Pro provides the world’s fastest matching speed of up to 3,000 match/sec.
- Massive Memory Capacity, VF30 Pro offers a massive memory capacity to manage largest number of users. A single unit of VF30 Pro can accommodate up to 3,000 users, 3,000 cards and 100,000 logs.
- Power over Etherne,t VF30 Pro supports a seamless power sourcing over Ethernet cable(CAT5/6) without any degrading network performance and reach. Anviz’s PoE featured devices compliance to IEEE802.3af standard, to provide users with lower installation cost, simpler cabling and lower maintenance cost.
- Versatile Interfaces ,VF30 Pro comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485,Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices.
- Freedom Infinite ,VF30 Pro supports WiFi mode by optional, to provide users with lower installation cost, simpler configration and lower maintenance cost.
Item | VF30 Pro | |
---|---|---|
Capacity | ||
Fingerprint Capacity | 3,000 | |
Card Capacity | 3,000 | |
Log Capacity | 100,000 | |
Inferface | ||
Comm | TCP/IP, RS485, POE (Standard IEEE802.3af), Optional WiFi | |
Relay | Relay Output (COM, NO, NC ) | |
I/O | Door Sensor, Exit Button, Door Bell,Wiegand in/out, Anti-pass Back | |
Feature | ||
Identification Mode | Finger, Password, Card | |
Identification Speed | <0.5s | |
Card Reading Distance | 1~5cm ( 125KHz), 13.56MHz <2CM ) for Standard CR80 Card |
|
Image Display | Support | |
Time Attendance Mode | 8 | |
Group, Time Zone | 16 Droup, 32 Time Zone | |
Work Code | 6 Digit | |
Short Message | 50 | |
WebServer | Support | |
Daylight Saving | Support | |
Voice Prompt | Support | |
Clock Bell | 30 Groups | |
Software | Anviz CrossChex | |
Hardware | ||
CPU | 1GHz Quick CPU | |
Sensor | Touch Active Sensor | |
Scanning Area | 22*18mm | |
RFID Card | Standard EM, Optional Mifare | |
Display | 2.4" TFT LCD | |
Dimensions(W * H * D) | 80 * 180 * 40mm | |
Working Temperature | -30?~ 60? | |
Humidity | 20% to 90% | |
PoE | Standard IEEE802.3af | |
Power | DC12V 1A | |
IP Grade | IP55 |
