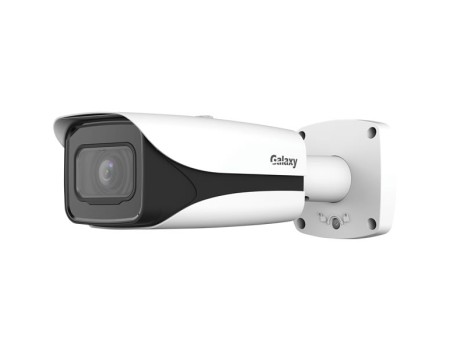

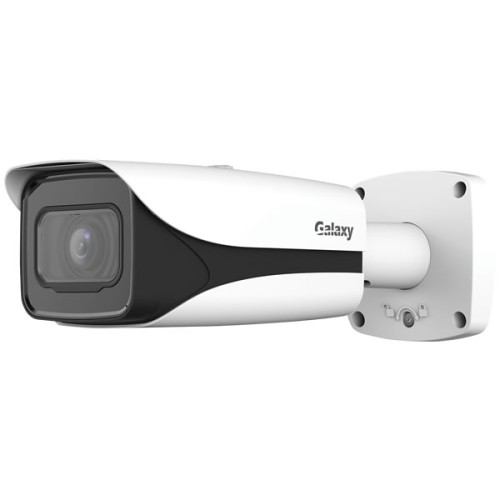

Product Code:
GX-HT848DL-M-AI-AP-Z
Summary:Build in Mic, 60 Meter IR Distance, H.265+, WDR, Alarm/Audio, 512GB Micro SD Support, IP67 & IK10, 2.7-12mm Motorized Lens, EPTZ, Heat Map, Functions: AI-Powered Image, Perimeter Protection, Face Detection, Smart Sound Detection, People Counting, Video Metadata, Deep light, Support - 40 Degree, 10.76" x 3.74" x 3.74", 2.47lb, Optional: PFA121, PFA156
- 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition
- Outputs max. 8MP (3840×2160) @25/30 fps.
- Built-in IR LED, and the illumination distance is 60 m.
- ROI, SVC, SMART 264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting,
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports 512 GB Micro SD card, built-in MIC.
- 12 VDC/PoE power supply;
- IP67 and IK10
- SMD 3.0.
Camera
Image Sensor |
1/1.8" CMOS |
Max. Resolution |
3840 (H) × 2160 (V) |
ROM |
4 GB |
RAM |
2 GB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.0008 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio |
>56 dB |
Illumination Distance |
60 m (196.85 ft) (IR) |
Illuminator On/Off Control |
Auto; Zoomprio; Manual |
Illuminator Number |
4 (IR LED) |
Angle Adjustment |
Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens
Lens Type |
Motorized vari-focal |
||||
Lens Mount |
PHI 14 |
||||
Focal Length |
2.7 mm–12 mm |
||||
Max. Aperture |
F1.8 |
||||
Field of View |
H: 113°–47°; V: 60°–26°; D: 133°–53° |
||||
Iris Control |
Auto |
||||
Close Focus Distance |
1.5 m (4.92 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
W |
83.4 m (273.62 ft) |
33.4 m (109.58 ft) |
16.7 m (54.79 ft) |
8.3 m (27.23 ft) |
|
T |
189.6 m (622.05 ft) |
75.8 m (248.69 ft) |
37.9 m (124.34 ft) |
19.0 m (62.34 ft) |
Intelligence
EPTZ |
Yes |
IVS (Perimeter Protection) |
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
Smart Object Detection |
Smart abandoned object; smart missing object |
SMD 3.0 |
Less false alarm, longer detection distance |
AI SSA |
Yes |
Face Detection |
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
People Counting |
Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
Heat Map |
Yes |
Video Metadata |
Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Smart Sound Detection |
Yes |
Video
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec |
Smart H.265+; Smart H.264+ |
AI Coding |
AI H.265; AI H.264 |
Video Frame Rate |
Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability |
4 streams |
Resolution |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 32 kbps–16384 kbps H.265: 12 kbps–13568 kbps |
Day/Night |
Auto(ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation (SSA) |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) |
Yes (4 areas) |
Image Stabilization |
Electronic Image Stabilization (EIS) |
|
|
Smart Illumination |
Yes |
Defog |
Yes |
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
Mirror |
Yes |
Privacy Masking |
8 areas |
Audio
Built-in MIC |
Yes |
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
Network
Network Port |
RJ-45 (10/100 Enhancement Base-T) |
SDK and API |
Yes |
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI |
User/Host |
20 (Total bandwidth: 80 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
Browser |
IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
Management Software |
SmartPSS Lite; DSS; DMSS |
Mobile Client |
iOS; Android |
Cyber Security |
Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
Certification
Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Port
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
2 channels in: wet contact, 5mA 3V–5V DC |
Alarm Output |
1 channel out: wet contact, 300mA 12V DC |
Power
Power Supply |
12 VDC/PoE (802.3af)/ePoE |
Power Consumption |
Basic: 4.0 W (12 VDC); 5.3 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10.2 W (12 VDC); 12.8 W (PoE) |
Environment
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
Operating Humidity |
</=95% |
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity |
10%–95% (RH), non-condensing |
Protection |
IP67; IK10 |
Structure
Casing Material |
Metal + plastic |
Product Dimensions |
273.2 mm × 95.0 mm × 95.0 mm (10.76" × 3.74" × 3.74") (L × W × H) |
Net Weight |
1.12 kg (2.47 lb) |
Gross Weight |
1.66 kg (3.66 lb) |
