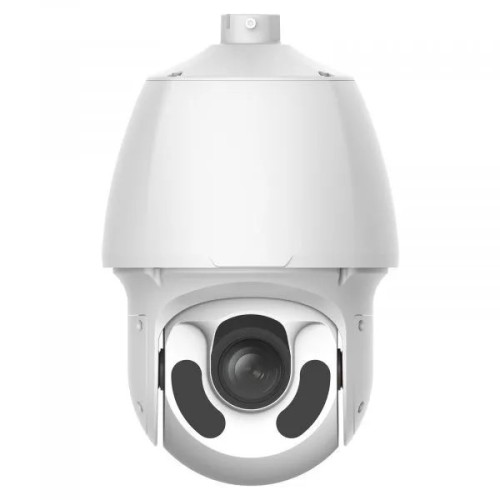

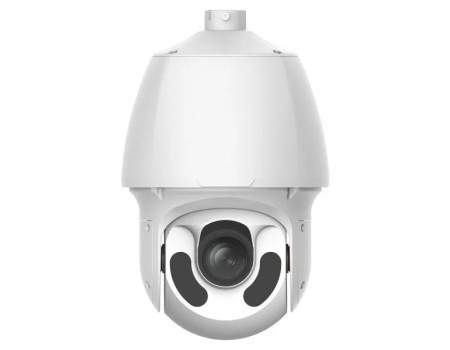

GX-PTZ-HD30-18-C-110 | Pan/Tilt/Zoom HD IP Color Camera(110VAC)
Data Sheet
Product Code:
Product Code:
GX-PTZ-HD30-18-C-110
Summary:1080p HD video with 33x optical zoom, Suitable for harsh weather environments & indoor applications, H.265, H.264, MJPEG multi-streaming, Integrated IR illuminators, 24VDC, 24VAC, or PoE
The GX-PTZ-HD30-18-C-110 is a high quality, high-definition color video camera with outstanding low-light performance. It has a 33x motor-driven optical zoom. The GX-PTZ-HD30-18-C-110 can provide multiple streams of high frame rate video.
The camera automatically switches to black and white and removes an IR cut filter to increase sensitivity in low light conditions. The integrated IR LEDs provide quality performance in complete darkness up to 150 meters.
The high speed pan, tilt, and zoom functions can be controlled automatically and precisely from
anywhere using the click-to-point and preset view features of IVC’s camera management software packages.
| Imager | 2 Megapixel 1/2.8” Progressive CMOS |
| Resolution | 1920(H)x1080(V) |
| Shutter Speed | 1~1/100K sec. |
| Minimum Illumination | Color: 0.001 Lux (F1.5, AGC On) 0 Lux to 150 m with IR ON |
| F number | F1.5 |
| Focal Length | 4.5mm - 148.5mm |
| Zoom ratio | 33x |
| Iris | Auto and Manual |
| Day/night | Auto |
| Focus | Auto and Manual |
| White Balance | Auto, Manual, ATW |
| View Angle | 56.2° (wide), 2.6°(tele) |
| I/O Terminals | 2 Inputs; 1 Output |
| Ethernet | 100Base-TX/10BaseT (RJ-45) |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, SMTP, ONVIF |
| Compression | M-JPEG, H.265/H.264 |
| Frame Rate | 60 FPS |
| Voltage Required | 24 VAC, 24 VDC, Proprietary PoE (110-220 VAC option available) |
| Power Consumption | 48 W max |
| Weight | 11.68lbs |
| Operating Temperature | -40° C - 65° C |
| Dimensions | 8.9“ W x 14.2” H |
| Mount | Wall Mount Standard* |
| Enclosure Rating | IP66 |
| Certifications | IEC 62368-1 UL 60950-1 FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
