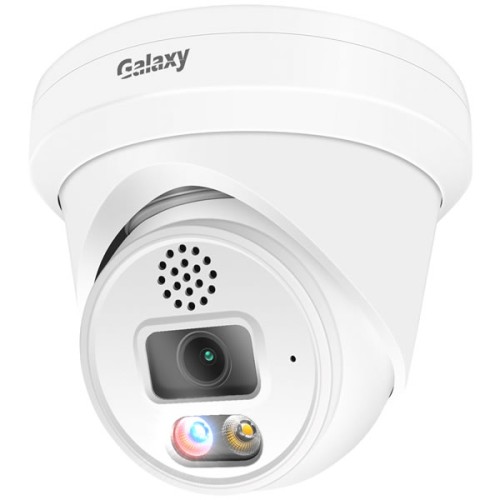

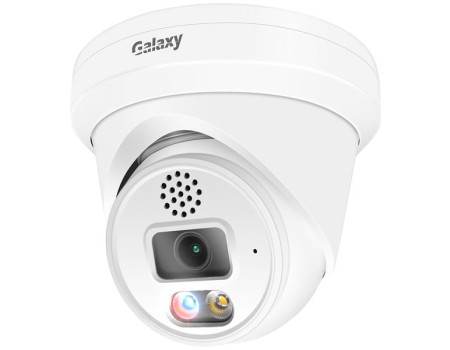

Galaxy NDAA Color-V 4K Active Deterrence Red & Blue Light AI Human Detection IPC
-450x350.jpg "Galaxy NDAA Color-V 4K Active Deterrence Red & Blue Light AI Human Detection IPC")
-74x74.jpg "Galaxy NDAA Color-V 4K Active Deterrence Red & Blue Light AI Human Detection IPC")
-500x500.jpg "Galaxy NDAA Color-V 4K Active Deterrence Red & Blue Light AI Human Detection IPC")
Data Sheet
Product Code:
Product Code:
GX-CV728A-28-AI-AD
Summary:Galaxy NDAA Color-V 4K Active Deterrence Red & Blue Light AI Human Detection IPC / 2pcs Dual Light / 20 Meter IR Distance / 2.8mm / DC 12V / IP66 / Metal / POE / Human Detection / JUNCTION BOX OPTIONAL: GX-CV-BK80X WALL MOUNT: GX-CV-BK09D
- 1/2.8" Sony CMOS sensor
- 4K resolution 3840 x 2160P
- Ultra low illumination 0.01Lux
- Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR, IR-CUT
- D-WDR, Motion Detection, Privacy Mask, Mirror
- Support AcuSense(Human body and Vehicle detection)
- RTSP and Onvif 17.06 compatible
- 265/H.264 dual-stream media server
- Easy-to-use P2P Cloud service
- Multi web browser, PC Client, mobile APP remote access
- Two way audio, Built in Microphone and Speaker ,with SD card slot(support up to 256GB SD card,default not with SD card)
- Support audio alarm to warn intruders off
- Lightning protection 4000V
- Strong water-proof housing, IP67
- 1PC red and blue flashlight alarm Light
- 1PCS Soft & Warm Supplemental Light,Light distance:20-30M
- HD 8mm F1.0 true starlight lens
- With reset button
|
Model | |
|
Camera |
|
|
Image Sensor |
1/2.8" Sony CMOS |
|
Effective Pixels |
8 megapixels |
|
Electronic Shutter |
AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
BLC /HLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay |
|
Encode |
|
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. |
|
Video Bitrates |
512Kbps - 12Mbps, VBR/CBR |
|
Audio Standard |
G.711-u/G.711-a |
|
Built-in Mic |
Yes |
|
Built-in Speaker |
Yes Two-way audio |
|
Storage |
Micro SD Slot (support up to 256G ) |
|
Smart Event |
Motion detection Human detection Vehicle detection |
|
LEDs |
|
|
LEDs |
1PC Soft & Warm Supplemental Light+1PC red and blue flashlight alarm Light |
|
Night Vision Distance |
20-30 M |
|
Lens |
|
|
Focal length |
2.8mm F1.0 true starlight lens |
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox (32bit esr), etc. |
|
Media |
CMS, Android, IOS |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, |
|
Power Supply |
POE, 12 VDC ± 10% |
|
POE |
IEEE802.3af |
|
Power Consumption |
< 8 W |
|
Operating Temp. |
-30?-(+60)?, 10%-90%RH |
