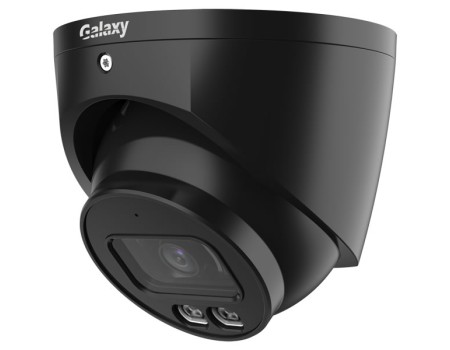

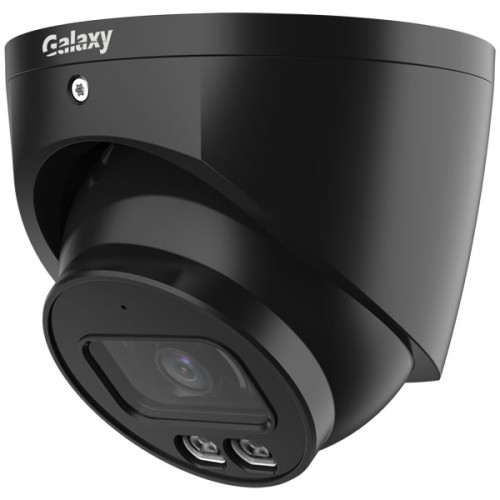

Product Code:
GX-HT724AB-SDI-AD
Summary:4MP, 2688x1520, @20fps, H.265+, 120dB WDR, Motion Detection, Intrusion Prevention, Tripwire, Human/Vehicle, IR, up to 30m (98ft), Built-in Mic, IP67, 2.8mm Lens, Fixed, PoE/DC12V
> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
Camera | |||||
Image Sensor | 1/2.9" CMOS | ||||
Max. Resolution | 2688 (H) × 1520 (V) | ||||
ROM | 128 MB | ||||
RAM | 128 MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
Min. Illumination | 0.006 lux@F1.6 (Color, 30 IRE) | ||||
S/N Ratio | >56 dB | ||||
Illumination Distance | up to 30 m (98.43 ft) (IR); up to 30 m (98.43 ft) (Warm light) | ||||
Illuminator On/Off Control | Auto; Manual | ||||
Illuminator Number | 1 (IR LED); 1 (Warm light) | ||||
Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
Lens | |||||
Lens Type | Fixed-focal | ||||
Lens Mount | M12 | ||||
Focal Length | 2.8 mm; 3.6 mm | ||||
Max. Aperture | F1.6 | ||||
Field of View | 2.8 mm: H: 95°; V: 52°; D: 114° | ||||
Iris Control | Fixed | ||||
Close Focus Distance | 2.8 mm: 0.9 m (2.95 ft); | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
2.8 mm | 63.6 m (208.66 ft) | 25.4 m (83.33 ft) | 12.7 m (41.67 ft) | 6.4 m (20.99 ft) | |
3.6 mm | 85.4 m (280.18 ft) | 34.2 m (112.20 ft) | 17.1 m (56.10 ft) | 8.5 m (27.89 ft) | |
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||
Intelligence | |||||
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | ||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||
Video | |||||
Video Compression | H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) | ||||
Smart Codec | Smart H.265+; Smart H.264+ | ||||
Video Frame Rate | Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) | ||||
Stream Capability | 2 streams | ||||
Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
Bit Rate Control | CBR/VBR | ||||
Video Bit Rate | H.264: 32 kbps–6144 kbps; | ||||
Day/Night | Auto(ICR)/Color/B/W | ||||
BLC | Yes | ||||
HLC | Yes | ||||
WDR | 120 dB | ||||
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
Gain Control | Auto;Manual | ||||
Noise Reduction | 3D NR | ||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||
Region of Interest (RoI) | Yes (4 areas) | ||||
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||
Mirror | Yes | ||||
Privacy Masking | 4 areas | ||||
Audio | |||||
Built-in MIC | Yes | ||||
Audio Compression | G.711a; G.711Mu; PCM; G.726 | ||||
Alarm | |||||
Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; SMD; voltage detection; security exception | ||||
Network | |||||
Network Port | RJ-45 (10/100 Base-T) | ||||
SDK and API | Yes | ||||
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P | ||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | ||||
User/Host | 6 (Total bandwidth: 36 M) | ||||
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) | ||||
Browser | IE; Chrome; Firefox | ||||
Management Software | DSS; DMSS | ||||
Mobile Client | iOS; Android | ||||
Cyber Security | Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout;syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification | ||||
Certification | |||||
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | ||||
Power | |||||
Power Supply | 12 VDC/PoE (802.3af) | ||||
Power Consumption | Basic: 2.1 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence + WDR + warm light): 4.4 W (12 VDC); 5.2 W (PoE) | ||||
Environment | |||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
Operating Humidity | </=95% | ||||
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
Protection | IP67 | ||||
Structure | |||||
Casing Material | Inner core: Metal ; Cover: Plastic | ||||
Product Dimensions | 100.9 mm × 109.9 mm (3.97" × 4.33") | ||||
Net Weight | 0.37 kg (0.82 lb) | ||||
Gross Weight | 0.51 kg (1.12 lb) |
