Data Sheet

Product Code:

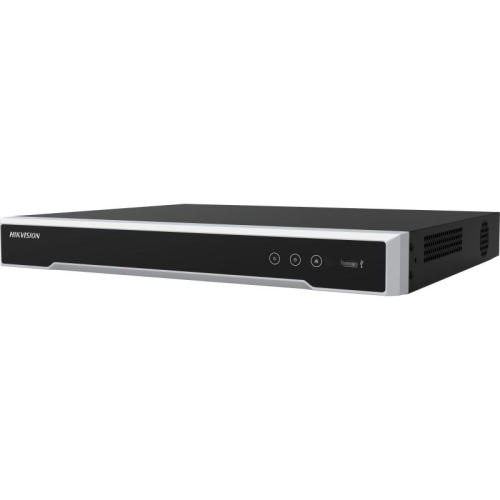

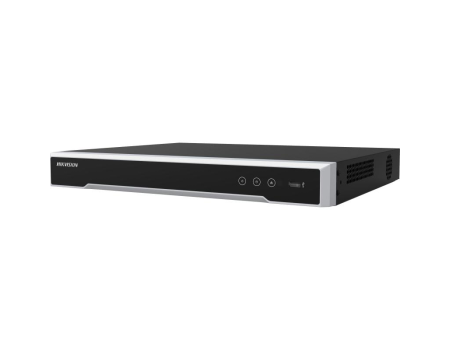

DS-7608NI-M2/8P

Summary:

up to 8MP8CH IP up to 8MP (3840x2160), 128Mbps, 1x HDMI up to 4K, 1x VGA, H.265+/H.265, 2-ch@32 MP (30 fps)+2-ch@8MP, Audio 1in/1out, Alarm 4in/1out, 2x RJ45 10/100/1000M, 2x SATA up to 16TB/ea, 1xUSB2.0, 1xUSB3.0

Professional and Reliability

  • 265+ compression effectively reduces the storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service
  • Support double verification for playback and downloading
  • Solar-powered camera is connectable through OTAP NVR would get stream when user requests, and camera would send back videos according to the schedule

HD Video Output

  • Provide independent HDMI and VGA outputs
  • HDMI video output at up to 8K resolution

Storage and Playback

  • Up to 2 SATA interfaces for HDD connection
  • 8-ch synchronous playback

Smart & POS Function

  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, ), heat map, ANPR, and people counting
  • POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

  • 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Smooth streaming technology
  • Support web access without plug-in

Video and Audio



IP Video Input

8-ch

Up to 32 MP resolution

*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

128 Mbps

Outgoing Bandwidth

256 Mbps



HDMI Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×

1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×

720/60Hz, 1024 × 768/60Hz



VGA Output

1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×

768/60Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 K Ohm)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 K Ohm, using the audio input)

Decoding

Decoding Format

H.265+/H.265/H.264+/H.264



Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/

2CIF/CIF/QCIF

*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Synchronous Playback

8-ch



Decoding Capability

2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30

fps)/40-ch@1080p (30 fps)

Dual-Stream Recording

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

Remote Connection

128



Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,

UPnP™, HTTP, HTTPS

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 16 TB capacity for each HDD

Alarm In/Out

4/1

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply

12 VDC, 3.33 A

Consumption

</= 15 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

Weight

</= 3 kg (without HDD, 2.2 lb.)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014



CE

EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020

Obtained Certification

CE, FCC, RoHS, REACH
