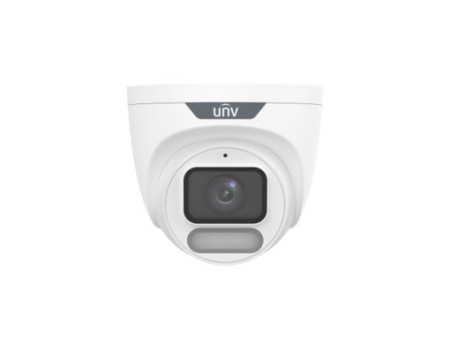

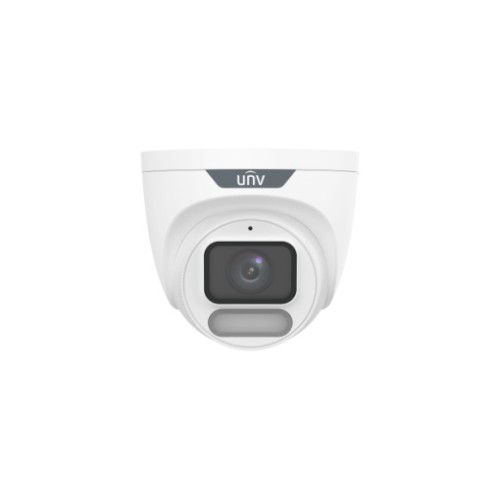

UNV 4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera
UNV 4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera
   0 reviews  |  Write a review
Data Sheet

Product Code:

IPC3624SR-ADF28KM-WP

Summary:

4MP, 2560X1440, @25fps, Ultra265, 120dB WDR, Motion Detection, Intrusion Prevention, Human/Vehicle, IR, up to 30m (98ft), Built-in Mic, MicroSD slot, IP67, 2.8mm Lens, Fixed, DC12V

Login for price
  • High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
  • 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • Colorhunter with Wise-ISP technology ensures 24-hour full-color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic
  • White Light, up to 30m white light distance
  • Supports 256 GB Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3-Axis
  IPC3624LE-ADF28K-WP IPC3624LE-ADF40K-WP
Camera
Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.0003lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360°
WDR 120dB
S/N >52dB
Lens
Lens 2.8mm@F1.0 4.0mm@F1.0
Iris Fixed
Field of View (H) 110.4° 89.4°
Field of View (V) 60.5° 48.2°
Field of View (D) 115.2° 94.7°
DORI
DORI Distance Lens (mm) Detect(m) Observe(m) Recognize(m) Identify(m)
2.8 43.4(142.5ft) 17.4(57.0ft) 8.7(28.5ft) 4.3(14.3ft)
4.0 62.1(203.6ft) 24.8(81.5ft) 12.4(40.7ft) 6.2(20.4ft)
Illuminator
Warm Light Range Up to 30m (98ft)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~6144Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Dual streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart Illumination Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, 802.1x, QoS, RTMP,SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 2.8W
Power Interface 5.5mm coaxial power plug
Dimensions ( x H) 118x106mm (4.6” x 4.2”)
Weight 0.48kg(1.06lb)
Material Metal + Plastic
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing)
surge protection 4KV
Reset Button Support
