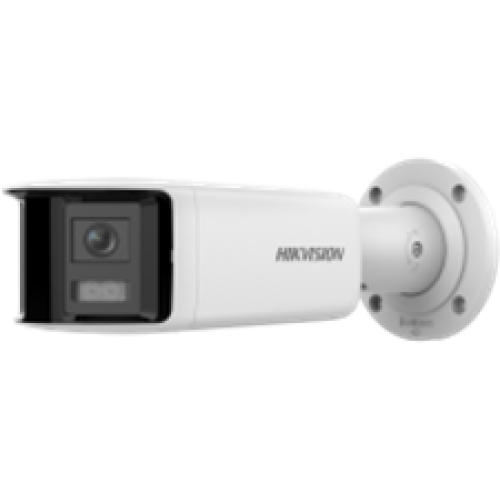

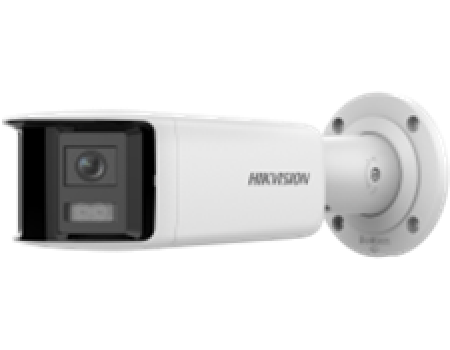

4MP dual lens panoramic bullet IP camera

Camera

Image Sensor

2 × 1/2.5" Progressive Scan CMOS

Max. Resolution

3040 × 1368

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, dual lens, 2.8 mm

Focal Length & FOV

2.8 mm, horizontal FOV: 180°, vertical FOV: 81°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI

DORI

2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 40 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 25 fps (3040 × 1368)

60 Hz: 24 fps (3040 × 1368)

Sub-Stream

50 Hz: 25 fps (1200 × 536, 960 × 432)

60 Hz: 24 fps (1200 × 536, 960 × 432)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps

(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,

Websocket, Websockets

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host

authentication (MAC address)

Network Storage

NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters Switch

Yes

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client

software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

>/= 52 dB

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

8 rectangular privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Built-in Microphone

Yes

Built-in Speaker

Max. power consumption: 1 W, max. sound pressure level: 10 cm: 97 dB

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7

KOhm, interface type: non-equilibrium,

1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output

impedance: 100 Ohm, interface type: non-equilibrium

Alarm

1 input, 1 output (max. 24 VAC/VDC, 1 A)

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output,

exception

Smart Event

Scene change detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm

output, trigger recording, trigger capture, audible warning, white light flashing

Deep Learning Function

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug,

PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W

Material

Front cover: metal, body: metal, bracket: metal

Dimension

118.6 mm × 105.1 mm × 306.5 mm (4.7" × 4.1" × 12.1")

Package Dimension

405 mm × 190 mm × 180 mm (16" × 7.5" × 7.1")

Weight

Approx. 1400 g (3.1 lb.)

With Package Weight

Approx. 2100 g (4.6 lb.)

Storage Conditions

-30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)

Startup and Operating

Conditions

-30 C to 60 C (-22 F to 140 F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,

Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-banding, heartbeat, flash log, pixel counter

Flashing Light

Yes

Approval

EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN

50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
