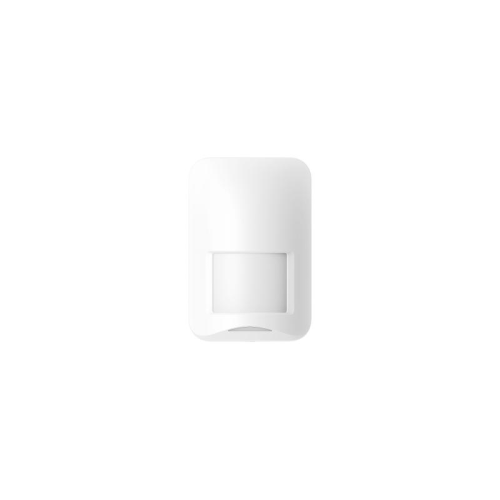

HIKVISION Wireless PIR Detector
HIKVISION Wireless PIR Detector
   0 reviews  |  Write a review
Data Sheet

Product Code:

DS-PD201P10-WA

Summary:

915 MHz

Login for price
  • Detection Range: 10 m / 90°
  • Up to 24 Kg pet immunity
  • Frequency hopping against jamming for reliable transmission
  • Communication
  • Transmission technology912.5~917.4 MHz
  • Transmission range (free space)Up to 1,600 m
  • Maximum effective radiated power (ERP)25 mW max
  • Radio signal modulation2GFSK
  • Detection performance
  • Detection methodPassive Infrared
  • Sensor modelSFG321-711
  • Detection range10 m
  • Detection angle90°
  • Detection zones78
  • Detectable speed0.3~2m/s
  • SensitivityHigh, Auto, Low
  • Pet immunity24 Kg at low sensitivity
  • White light filter3500lux
  • Digital processingYes
  • Sealed opticsYes
  • Software features
  • Temperature indicatorYes
  • Indication
  • Indication methodLED
  • Electrical characteristics
  • Power supply2 × AA batteries
  • Power consumption

    max current: 50 mA

    quiescent current: 8 uA

  • Battery lifeUp to 2 years (standby time)
  • General
  • Installation methodIndoors
  • Installation height2 m to 2.4 m
  • Operation temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Operation humidity10% to 90%
  • Dimension (W×H×D)62 x 93 x 41.5 mm
  • Weight71.5 g
  • BracketOptional Wall & Ceiling brackets, sold separately
