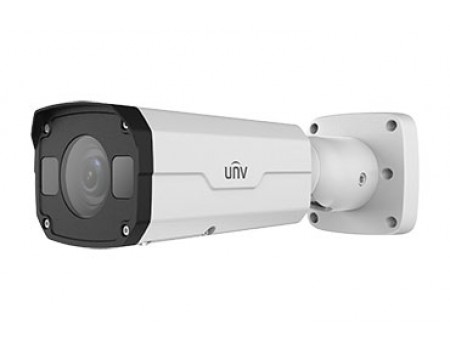

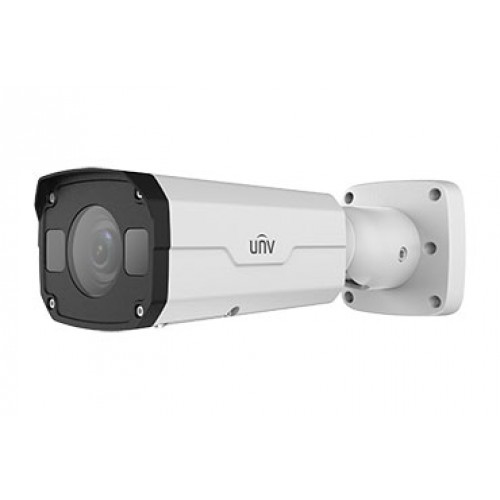

Uniview IPC2324 Series 2MP IR Bullet Camera
Uniview IPC2324 Series 2MP IR Bullet Camera
Data Sheet
Product Code:
Product Code:
IPC2324EBR-DPZ28
Summary:1/3" CMOS, ICR, 2592*1520: 20fps; 2560*1440: 25fps, Ultra 265/H.264/MJPEG, Triple streams, DC12V & PoE, Micro SD card slot, Alarm in/out 1/1, Audio, IP67, 2.8-12mm Motorized Varifocal lens, IR anti-reflection window, Bulit-in bracket, IR range: up to 30m
Optics
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IP67
IPC2324EBR-DPZ28 | ||||||||
Camera | ||||||||
Sensor | 1/3", progressive scan,4.0 megapixel, CMOS | |||||||
Lens | 2.8~12mm, AF automatic focusing and motorized zoom lens | |||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
2.8mm | 63 | 25.2 | 12.6 | 6.3 | ||||
12mm | 270 | 108 | 54 | 27 | ||||
Angle of View(H) | 104.4°~25° | |||||||
Angle of View (V) | 54.4°~13.7° | |||||||
Angle of View (O) | 135.7°~30.8° | |||||||
Adjustmentangle | Pan: 0°~360° | Tilt: 0°~90° | Rotate:0°~360° | |||||
Shutter | Auto/Manual, 1/6~1/100000 s | |||||||
Minimum Illumination | Colour: 0.005 Lux (F1.4, AGC ON) 0 Lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
S/N | >52 dB | |||||||
IR Range | Up to 30m (98 ft) IR range | |||||||
Defog | Digital Defog | |||||||
WDR | 120dB | |||||||
Video | ||||||||
Video Compression | Ultra 265,H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
Frame Rate | Main Stream:4MP (2592×1520): Max. 20 fps4MP (2560×1440): Max. 25 fps3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps | |||||||
9:16 Corridor Mode | Supported | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
OSD | Up to 8 OSDs | |||||||
Privacy Mask | Up to 8 areas | |||||||
ROI | Up to 8 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Smart | ||||||||
Behavior Detection | Intrusion, cross line, motion detection | |||||||
Intrusion | Enter and loiter in a pre-defined virtual region | |||||||
cross line | Cross a pre-defined virtual line | |||||||
motion detection | Moving within a pre-defined virtual region | |||||||
Recognition: | Face detection Audio detection | |||||||
Intelligent Identification | Defocus, Scene Change | |||||||
Statistical Analysis | People counting | |||||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
Audio | ||||||||
Audio Compression | G.711 | |||||||
Two-way audio | Supported | |||||||
Suppression | Supported | |||||||
Sampling Rate | 8 KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 128 GB | |||||||
Network Storage | ANR | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS | |||||||
Compatible Integration | ONVIF(Profile S, Profile G), API | |||||||
Interface | ||||||||
Audio I/O | Audio cable | |||||||
Input: impedance 35 k?; amplitude 2 V [p-p] | ||||||||
Output: impedance 600; amplitude 2 V [p-p] | ||||||||
Alarm I/O | 1/ 1 | |||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
General | ||||||||
Power | 12 V DC±25%, PoE (IEEE802.3 af) | |||||||
Power consumption: Max 9W | ||||||||
Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) | |||||||
Weight | 0.58 kg (1.28 lb) | |||||||
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) | |||||||
Ingress Protection | IP67 |
