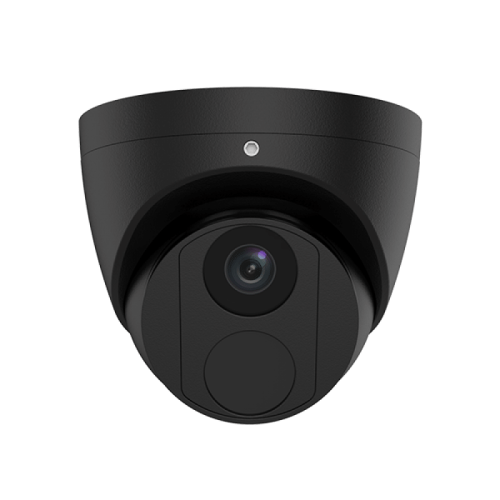

IPC3618SB-ADF28KMC-I0 Uniview UNV 8MP HD Light and Audible Warning Fixed Eyeball
IPC3618SB-ADF28KMC-I0 Uniview UNV 8MP HD Light and Audible Warning Fixed Eyeball
   0 reviews  |  Write a review
Data Sheet

Product Code:

IPC3618SB-ADF28KMC-I0-BK

Summary:

4K/8MP, 3840x2160, @20fps, Ultra265, 120dB WDR, Motion Detection, People Counting, Intrusion Prevention, IR, up to 30m (98ft), Built-in Mic/Speaker, MicroSD slot, OSD/UTC, IP67, 2.8mm Lens, Fixed, PoE/DC12V, Recommended mounts (AE-TR-JB03-G-IN; AE-TR-WM03-DIN)

Login for price
  • High quality image with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic and Speaker
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection
IPC3618SB-ADF28KM-I0IPC3618SB-ADF40KM-I0
Camera
Sensor1/2.7", 8.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour: 0.0025 lux (F1.6, AGC ON)
0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 3° ~ 360°Tilt: 0° ~ 80°Rotate: 3° ~ 360°
WDR120dB
S/N>56dB
Lens
Lens2.8mm@F1.64.0mm@F1.6
IrisFixed
Field of View (H)112.4°86.5°
Field of View (V)60.1°44.1°
Field of View (D)146.1°112.5°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.884.033.616.88.4
4.0120.048.024.012.0
Illuminator
IR RangeUp to 30m (98 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamTriple streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image SettingImage rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingSupport
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio CompressionG.711
Audio Bitrate64 Kbps
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 3 user levels: administrator, common user, operator
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZView
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/ON/A
Alarm I/ON/A
RS485N/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certifications
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.0W
Power Interface 5.5mm coaxial power plug
Dimensions (L × W × H)110.5 x 94.1mm (4.4” x 3.7”)
Weight0.44kg (0.97lb)
MaterialMetal
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing)
Strorage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing)
Surge Protection4KV
Reset ButtonN/A
