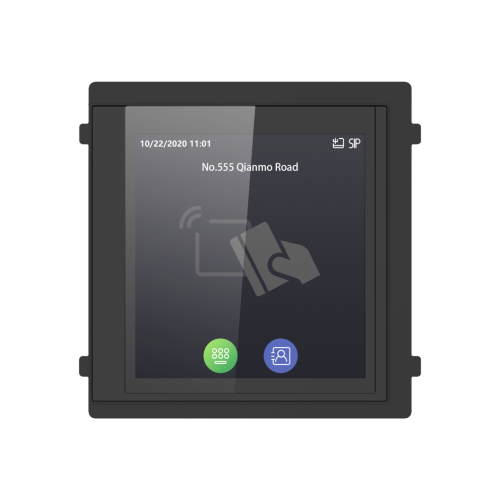

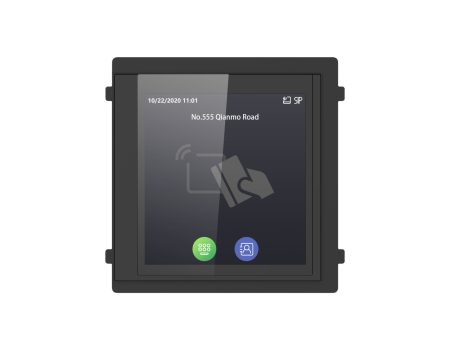

Galaxy Platinum IP Intercom Outdoor Touch Display Reader Module
Data Sheet
Product Code:
Product Code:
DS-KD-TDM
Summary:Modular door station Touch&Display module, needs mouting bracket, 4 inch touch screen, IP65, IK8 Dial number display, pin code & card unlock, contact list & advertisement display, Stores and searches contact list, Multiple languages
- Modular door station Touch&Display module, needs mouting bracket
- 4 inch touch screen, IP65?IK8
- Dial number display, pin code & card unlock, contact list & advertisement display
- Stores and searches contact list
- Multiple languages
- System Parameters
- Operating SystemLinux
- ROM32 MB
- RAM128 MB
- Display Parameters
- Screen Size4-inch
- TypeIPS touch screen
- Resolution480 x 480
- Brightness500 cd/m2
- Audio Parameters
- Audio Compression Standard/
- Audio Input/
- Audio OutputBuzzer
- Audio Quality/
- Volume Adjustment/
- Power Output/
- Network Parameters
- Wireless NetworkOnly AP mode
- Authentication
- Card Reading Frequency13.56 MHz
- Card Reading Distance2 cm
- Card TypeMifare card
- Device Interfaces
- TF CardReserved
- DIP Switch8 bits
- Cascade Interface2
- General
- InstallationSurface, flush
- Protective LevelIP65, IK8
- Working Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Working Humidity10% to 95% (no-condensing)
- Dimensions100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
- Power Supply12 VDC, supplied by the main module
- Power Consumption</= 4 W
- LanguageEnglish,French,Portuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
